TL4242QKTTRQ1 供应商
-
TL4242QKTTRQ1
品牌：TI 封装/批号：原厂原装/22+ -
TL4242QKTTRQ1
品牌：TI/德州仪器 封装/批号：15000/21+
TL4242QKTTRQ1 属性参数
- 现有数量：500现货10,000Factory
- 价格：1 : ￥27.82000剪切带（CT）500 : ￥17.40662卷带（TR）
- 系列：Automotive, AEC-Q100
- 包装：卷带（TR）剪切带（CT）? 得捷定制卷带
- 产品状态：在售
- 类型：线性
- 拓扑：-
- 内部开关：是
- 输出数：1
- 电压 - 供电（最低）：4.5V
- 电压 -?供电（最高）：42V
- 电压 - 输出：16V
- 电流 - 输出/通道：500mA
- 频率：-
- 调光：-
- 应用：-
- 工作温度：-40°C ~ 125°C（TA）
- 安装类型：表面贴装型
- 封装/外壳：TO-263-8，D2Pak（7 引线+接片），TO-263CA
- 供应商器件封装：DDPAK/TO-263-7
产品特性
- Qualified for Automotive Applications
- AEC-Q100 Test Guidance With the Following Results: Device Temperature Grade 2: –40°C to 105°C Ambient Operating Temperature Range for WSON packageDevice Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range for TO-263 packageDevice HBM ESD Classification Level H1CDevice CDM ESD Classification Level C3B
- Device Temperature Grade 2: –40°C to 105°C Ambient Operating Temperature Range for WSON package
- Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range for TO-263 package
- Device HBM ESD Classification Level H1C
- Device CDM ESD Classification Level C3B
- Adjustable Constant Current up to 500 mA (±5%)
- Wide Input-Voltage Range up to 42 V
- Low Dropout Voltage
- Open-Load Detection
- Overtemperature Protection
- Short-Circuit Proof
- Reverse-Polarity Proof
产品概述
The TL4242-Q1 device is an integrated adjustable constant-current source, driving loads
up to 500 mA. One can adjust the output current level through an external resistor. The device
design is for supplying high-power LEDs (for example, OSRAM Dragon LA W57B) under the severe
conditions of automotive applications, resulting in constant brightness and extended LED lifetime.
The device comes in the DRJ (WSON) and KTT (TO-263) package. Protection circuits prevent damage to
the device in case of overload, short-circuit, reverse polarity, and overheat. The device provides
the connected LEDs protection against reverse polarity as well as excess voltages up to
45 V.The integrated PWM input of the TL4242-Q1 device permits LED brightness regulation by
pulse-width modulation (PWM). The high-input impedance of the PWM input allows operating the LED
driver as a protected high-side switch.

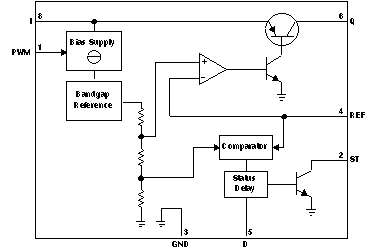

TL4242QKTTRQ1 电路图
