TPS61301YFFR 供应商
-
TPS61301YFFR
品牌：TI 封装/批号：原厂原装/22+ -
TPS61301YFFR
品牌：TI 封装/批号：UFBGA-20/23+
TPS61301YFFR 属性参数
- 标准包装：3,000
- 类别：集成电路 (IC)
- 家庭：PMIC - LED 驱动器
- 系列：-
- 恒定电流：是
- 恒定电压：是
- 拓扑：PWM，升压（升压）
- 输出数：3
- 内部驱动器：是
- 类型 - 主要：闪灯/白光，通用
- 类型 - 次要：白色 LED
- 频率：1.92MHz
- 电源电压：2.5 V ~ 5.5 V
- 输出电压：5.5V，5.7V
- 安装类型：表面贴装

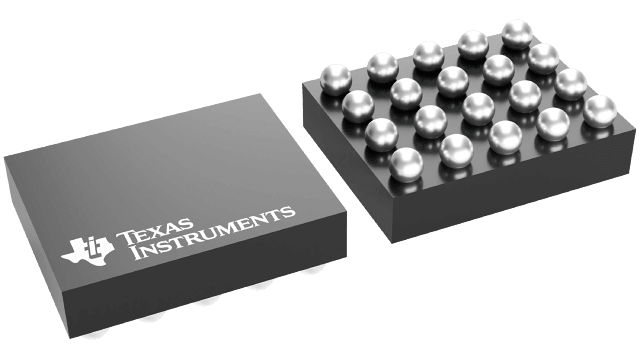

- 封装/外壳：20-UFBGA，DSBGA
- 供应商设备封装：20-DSBGA
- 包装：带卷 (TR)
- 工作温度：-40°C ~ 85°C
产品特性
- Four Operational Modes DC Light and Flashlight Voltage Regulated Converter: 3.8 V to 5.7 V Standby: 2 µA (Typical)
- DC Light and Flashlight
- Voltage Regulated Converter: 3.8 V to 5.7 V
- Standby: 2 µA (Typical)
- Storage Capacitor Friendly Solution
- Automatic VF and ESR Calibration
- Power-Save Mode for Improved Efficiency at Low Output Power, Up to 95% Efficiency
- Output Voltage Remains Regulated When Input Voltage Exceeds Nominal Output Voltage
- I2C Compatible Interface up to 3.4 Mbits/s
- Zero Latency Tx-Masking Input
- Hardware Voltage Mode Selection Input (TPS61300, TPS61301)
- DC Light Mode Selection Input (TPS61300, TPS61306)
- Hardware Reset Input (TPS61301, TPS61305)
- LED Temperature Monitoring (TPS61305)
- Privacy Indicator LED Output
- Integrated LED Safety Timer
- Total Solution Size of Less Than 25 mm2 (< 1 mm height)
- Available in a 20-Pin NanoFree™ (DSBGA)
产品概述
The TPS6130xx device is based on a high-frequency synchronous boost topology with
constant current sinks to drive up to three white LEDs in parallel (400-mA, 800-mA,
and 400-mA maximum flash current). The extended high-current mode (HC_SEL) allows up to 1025-mA,
2050-mA, and 1025-mA flash current out of the storage capacitor.The high-capacity storage capacitor on the output of the boost regulator provides the
high-peak flash LED current, thereby reducing the peak current demand from the battery to a
minimum.The 2-MHz switching frequency allows the use of small and low profile 2.2-µH inductors.
To optimize overall efficiency, the device operates with a 400-mV LED feedback voltage.The TPS6130xx device not only operates as a regulated current source, but also as a
standard voltage boost regulator. The device keeps the output voltage regulated even when the input
voltage exceeds the nominal output voltage. The device enters power-save mode operation at light
load currents to maintain high efficiency over the entire load current range.To simplify flashlight synchronization with the camera module, the device offers a
trigger pin (FLASH_SYNC) for zero latency LED turnon time.
