TPS53129RGER 供应商
-
TPS53129RGER
品牌：TI 封装/批号：原厂原装/22+ -

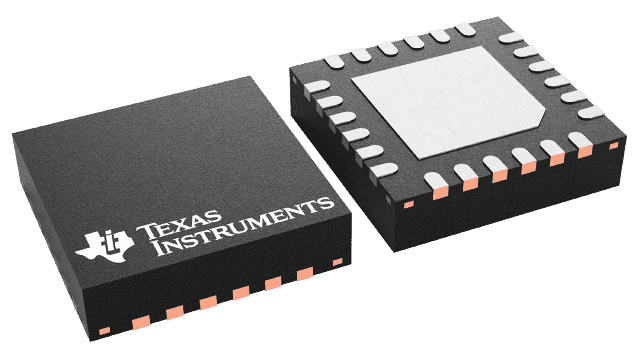

TPS53129RGER
品牌：TI(德州仪器) 封装/批号：VQFN-24/2022+
TPS53129RGER 属性参数
- 标准包装：1
- 类别：集成电路 (IC)
- 家庭：PMIC - 稳压器 - DC DC 切换控制器
- 系列：D-CAP2™
- PWM 型：控制器
- 输出数：2
- 频率 - 最大：700kHz
- 占空比：89%
- 电源电压：4.5 V ~ 24 V
- 降压：是
- 升压：无
- 回扫：无
- 反相：无
- 倍增器：无
- 除法器：无
- Cuk：无
- 隔离：无
- 工作温度：-40°C ~ 85°C
- 封装/外壳：24-VFQFN 裸露焊盘
- 包装：®
- 其它名称：296-27800-6
产品特性
- D-CAP2 Mode Control Fast Transient Response No External Parts Required for Loop Compensation Compatible With Ceramic Output Capacitors
- Fast Transient Response
- No External Parts Required for Loop Compensation
- Compatible With Ceramic Output Capacitors
- High Initial Reference Accuracy (±1%)
- Low Output Ripple
- Wide Input Voltage Range: 4.5 V to 24 V
- Output Voltage Range: 0.76 V to 5.5 V
- Low-Side RDS(ON) Loss-Less Current Sensing
- Adaptive Gate Drivers with Integrated Boost Diode
- Adjustable Soft Start
- Non-Sinking Pre-Biased Soft Start
- 700-kHz Switching Frequency
- Cycle-by-Cycle Over-Current Limiting Control
- 30-mV to 300-mV OCP Threshold Voltage
- Thermally Compensated OCP by 4000 ppm/°C at ITRIP
- Auto-Skip Eco-mode for High Efficiency at Light Load
- APPLICATIONS Point-of-Load Regulation in Low Power Systems for Wide Range of Applications Digital TV Power Supply Networking Home Terminal Digital Set-Top Box (STB) DVD Player/Recorder Gaming Consoles
- Point-of-Load Regulation in Low Power Systems for Wide Range of Applications Digital TV Power Supply Networking Home Terminal Digital Set-Top Box (STB) DVD Player/Recorder Gaming Consoles
- Digital TV Power Supply
- Networking Home Terminal
- Digital Set-Top Box (STB)
- DVD Player/Recorder
- Gaming Consoles
产品概述
The TPS53129 is a dual, adaptive on-time D-CAP2™ mode synchronous buck controller. The TPS53129 enables
system designers to complete the suite of various end equipment’s power bus regulators with cost
effective, low component count, and low standby current solution. The main control loop for the
TPS53129 uses the D-CAP2™ mode control which
provides a very fast transient response with no external components.
The TPS53129 also has a
circuit that enables the device to adapt to both low equivalent series resistance (ESR) output
capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The fixed frequency
emulated adaptive on-time control supports seamless operation between PWM mode at heavy load
condition and reduced frequency operation at light load for high efficiency down to milliampere
range.The device provides convenient and efficient operation with input voltages from 4.5 V to 24 V
and output voltages from 0.76 V to 5.5 V.The TPS53129 is available in 4-mm × 4-mm 24-pin QFN (RGE) or 24-pin TSSOP (PW) packages,
and is specified from –40°C to 85°C ambient temperature range.
