TPS53127RGET 供应商
-
TPS53127RGET
品牌：TI 封装/批号：原厂原装/22+ -

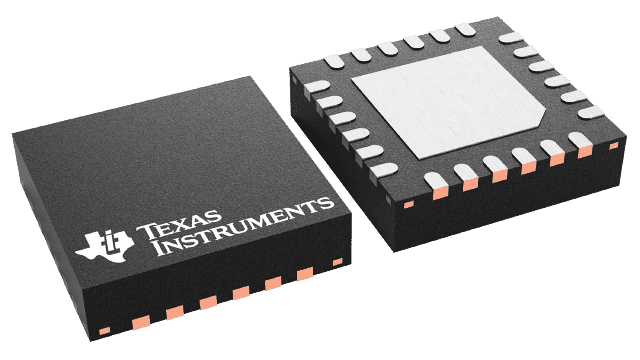

TPS53127RGET
品牌：TI(德州仪器) 封装/批号：VQFN-24/2022+
TPS53127RGET 属性参数
- 标准包装：1
- 类别：集成电路 (IC)
- 家庭：PMIC - 稳压器 - DC DC 切换控制器
- 系列：D-CAP2™
- PWM 型：控制器
- 输出数：2
- 频率 - 最大：700kHz
- 占空比：89%
- 电源电压：4.5 V ~ 24 V
- 降压：是
- 升压：无
- 回扫：无
- 反相：无
- 倍增器：无
- 除法器：无
- Cuk：无
- 隔离：无
- 工作温度：-40°C ~ 85°C
- 封装/外壳：24-VFQFN 裸露焊盘
- 包装：®
- 其它名称：296-27238-6
产品特性
- D-CAP2 Mode Control Fast Transient Response No External Parts Required for Loop Compensation Compatible With Ceramic Output Capacitors
- Fast Transient Response
- No External Parts Required for Loop Compensation
- Compatible With Ceramic Output Capacitors
- High Initial Reference Accuracy (±1%)
- Low Output Ripple
- Wide Input Voltage Range: 4.5 V to 24 V
- Output Voltage Range: 0.76 V to 5.5 V
- Low-Side RDS(ON) Loss-Less Current Sensing
- Adaptive Gate Drivers with Integrated Boost Diode
- Adjustable Soft Start
- Non-Sinking Pre-Biased Soft Start
- 700-kHz Switching Frequency
- Cycle-by-Cycle Over-Current Limiting Control
- 30-mV to 300-mV OCP Threshold Voltage
- Thermally Compensated OCP by 4000 ppm/°C at ITRIP
- APPLICATIONS Point-of-Load Regulation in Low Power Systems for Wide Range of Applications Digital TV Power Supply Networking Home Pin Digital Set-Top Box (STB) DVD Player/Recorder Gaming Consoles
- Point-of-Load Regulation in Low Power Systems for Wide Range of Applications Digital TV Power Supply Networking Home Pin Digital Set-Top Box (STB) DVD Player/Recorder Gaming Consoles
- Digital TV Power Supply
- Networking Home Pin
- Digital Set-Top Box (STB)
- DVD Player/Recorder
- Gaming Consoles
产品概述
The TPS53127 is a dual, adaptive on-time D-CAP2™ mode synchronous buck controller. The part enables
system designers to cost effectively complete the suite of various end equipment’s power bus
regulators with a low external component count and low standby consumption. The main control loop
for the TPS53127 uses the D-CAP2 Mode topology
which provides a very fast transient response with no external component.The TPS53127 also has a proprietary circuit that enables the device to adapt not only low
equivalent series resistance (ESR) output capacitors such as POSCAP/SP-CAP, but also ceramic
capacitor. The part provides a convenient and efficient operation with conversion voltages from 4.5
V to 24 V and output voltage from 0.76 V to 5.5 V.The TPS53127 is available in the 24 pin RGE/PW package, and is specified from –40°C to
85°C ambient temperature range.
TPS53127RGET 电路图
