TPS51461RGET 供应商
-
TPS51461RGET
品牌：TI 封装/批号：原厂原装/22+ -

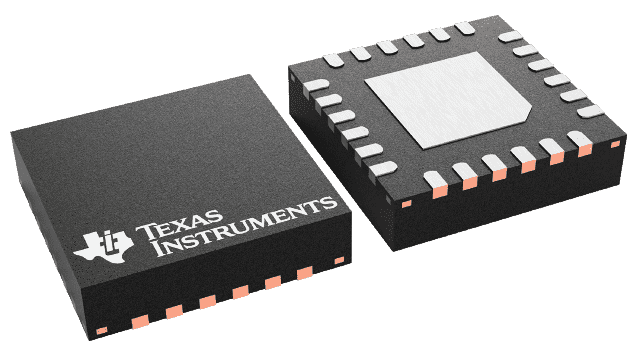

TPS51461RGET
品牌：TI(德州仪器) 封装/批号：VQFN-24(4x4)/2022+
TPS51461RGET 属性参数
- 标准包装：250
- 类别：集成电路 (IC)
- 家庭：PMIC - 稳压器 - DC DC 开关稳压器
- 系列：D-Cap+™
- 类型：降压（降压）
- 输出类型：可调式
- 输出数：1
- 输出电压：0.8 V ~ 6.5 V
- 输入电压：3.3 V ~ 5 V
- PWM 型：混合物
- 频率 - 开关：700kHz，1MHz
- 电流 - 输出：6A
- 同步整流器：是
- 工作温度：0°C ~ 85°C
- 安装类型：表面贴装
- 封装/外壳：24-VFQFN 裸露焊盘
- 包装：带卷 (TR)
- 供应商设备封装：24-VQFN 裸露焊盘（4x4）
产品特性
- Integrated FETs Converter w/TI Proprietary D-CAP+™ Mode Architecture
- 6-A Maximum Output Current
- Minimum External Parts Count
- Support all MLCC Output Capacitor and SP/POSCAP
- Auto Skip Mode
- Selectable 700-kHz and 1-MHz Frequency
- Small 4 × 4, 24-Pin, QFN Package
产品概述
The TPS51461 is a fully integrated synchronous buck regulator employing D-CAP+™. It is used for up to 5-V step-down where system size is at its premium, performance and optimized BOM are must-haves.This device fully supports Intel system agent applications with integrated 2-bit VID function.The TPS51461 also features two switching frequency settings (700 kHz and 1 MHz), skip mode, pre-bias startup, programmable external capacitor soft-start time/voltage transition time, output discharge, internal VBST Switch, 2-V reference (±1%), power good and enable. The TPS51461 is available in a 4 mm × 4 mm, 24-pin, QFN package (Green RoHs compliant and Pb free) and is specified from 0°C to 85°C.
