TPS3808G01QDRVRQ1 供应商
-
TPS3808G01QDRVRQ1
品牌：TI 封装/批号：原厂原装/22+ -
TPS3808G01QDRVRQ1
品牌：TI 封装/批号：WSON-6/23+
TPS3808G01QDRVRQ1 属性参数
- 标准包装：1
- 类别：集成电路 (IC)
- 家庭：PMIC - 监控器
- 系列：-
- 类型：简单复位/加电复位
- 监视电压数目：1
- 输出：开路漏极或开路集电极
- 复位：低有效
- 复位超时：可调节/可选择
- 电压 - 阀值：可调节/可选择
- 工作温度：-40°C ~ 125°C
- 安装类型：表面贴装

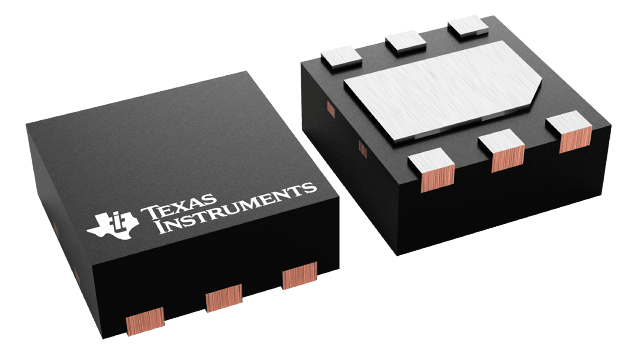

- 封装/外壳：6-WDFN 裸露焊盘
- 供应商设备封装：6-SON 裸露焊盘（2x2）
- 包装：®
- 其它名称：296-27676-6
产品特性
- Qualified for Automotive Applications
- Power-On Reset Generator With Adjustable Delay Time: 1.25 ms to 10 s
- Very Low Quiescent Current: 2.4 µA Typical
- High Threshold Accuracy: 0.5% Typical
- Fixed Threshold Voltages for Standard Voltage Rails From 1.2 V to 5 V and Adjustable Voltage Down to 0.4 V Are Available
- Manual Reset (MR) Input
- Open-Drain RESET Output
- Temperature Range: –40°C to +125°C
- Small SOT-23 Package and WSON Package (TPS3808G01QDRVRQ1 only)
产品概述
The TPS3808Gxx-Q1 microprocessor supervisory circuits monitor system voltages from 0.4 V
to 5 V, asserting an open-drain RESET signal when the SENSE voltage drops
below a preset threshold or when the manual reset (MR) pin drops to a logic
low. The RESET output remains low for the user-adjustable delay time after
the SENSE voltage and MR return above their thresholds.The TPS3808Gxx-Q1 device uses a precision reference to achieve 0.5% threshold accuracy
for VIT ≤ 3.3 V. The reset delay time can be set to 20 ms by disconnecting
the CT pin, 300 ms by connecting the CT pin to
VDD using a resistor, or can be user-adjusted from 1.25 ms to 10 s by
connecting the CT pin to an external capacitor. The TPS3808Gxx-Q1 has a very
low typical quiescent current of 2.4 µA, so it is well suited for battery-powered applications. The
device is available in a small SOT-23 package (one option available in WSON) and is fully specified
over a temperature range of –40°C to +125°C (TJ).
For more information about TI’s voltage supervisor portfolio, visit the
Supervisor and
Reset IC Overview Page page.

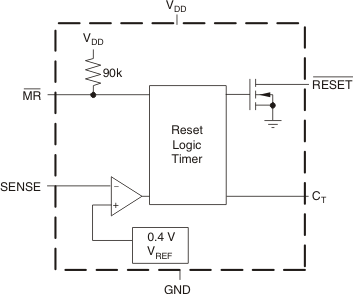

TPS3808G01QDRVRQ1 电路图
