TL971IDR 供应商
TL971IDR 属性参数
- 标准包装：1
- 类别：集成电路 (IC)
- 家庭：Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
- 系列：-
- 放大器类型：通用
- 电路数：1
- 输出类型：满摆幅
- 转换速率：5 V/µs
- 增益带宽积：12MHz
- -3db带宽：-
- 电流 - 输入偏压：200nA
- 电压 - 输入偏移：1000µV
- 电流 - 电源：2mA
- 电流 - 输出 / 通道：80mA
- 电压 - 电源，单路/双路(±)：2.7 V ~ 12 V，±1.35 V ~ 6 V
- 工作温度：-40°C ~ 125°C
- 安装类型：表面贴装
- 封装/外壳：8-SOIC（0.154"，3.90mm 宽）
- 供应商设备封装：8-SOIC
- 包装：®
- 其它名称：296-22841-6
产品特性
- Rail-to-Rail Output Voltage Swing: ±2.4 V at VCC = ±2.5 V
- Very Low Noise Level: 4 nV/√Hz
- Ultra-Low Distortion: 0.003%
- High Dynamic Features: 12 MHz, 5 V/µs
- Operating Range: 2.7 V to 12 V
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22 2000-V Human-Body Model 1500-V Charged-Device Model
- 2000-V Human-Body Model
- 1500-V Charged-Device Model
产品概述
The TL97x family of single, dual, and quad operational amplifiers operates at voltages as
low as ±1.35 V and features output rail-to-rail signal swing. The TL97x boast characteristics that
make them particularly well suited for portable and battery-supplied equipment. Very low noise and
low distortion characteristics make them ideal for audio preamplification.The TL971 is housed in the space-saving 5-pin SOT-23 package, which simplifies board
design because of the ability to be placed anywhere (outside dimensions are 2.8 mm × 2.9
mm).

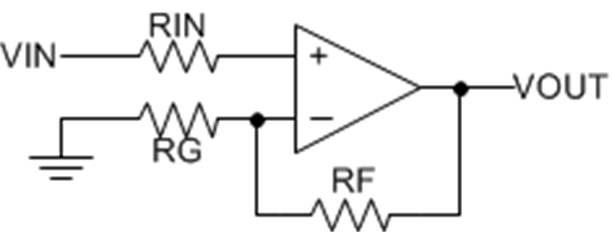

TL971IDR 电路图
