TL4242DRJR 供应商
-
TL4242DRJR
品牌：TI 封装/批号：SON8/22+ -
TL4242DRJR
品牌： 封装/批号：/0 -
TL4242DRJR
品牌：TI/德州仪器 封装/批号：SON8/21+ -
TL4242DRJR
品牌：TI/德州仪器 封装/批号：SON8/1240+
TL4242DRJR 属性参数
- 特色产品：TL4242 Adjustable LED Driver
- 标准包装：1
- 类别：集成电路 (IC)
- 家庭：PMIC - LED 驱动器
- 系列：-
- 恒定电流：是
- 恒定电压：-
- 拓扑：线性（LDO），PWM
- 输出数：1
- 内部驱动器：是
- 类型 - 主要：车载
- 类型 - 次要：-
- 频率：-
- 电源电压：4.5 V ~ 42 V
- 输出电压：16V
- 安装类型：表面贴装
- 封装/外壳：8-WDFN 裸露焊盘
- 供应商设备封装：8-SON 裸露焊盘（4x4）
- 包装：®
- 工作温度：-40°C ~ 150°C
- 其它名称：296-23615-6
产品特性
- Adjustable Constant Current up to 500 mA (±5%)
- PWM Brightness Regulation
- Wide Input Voltage Range up to 42 V
- Low Drop Voltage
- Open-Load Detection
- Overtemperature Protection
- Short-Circuit Proof
- Reverse-Polarity Proof
- Wide Temperature Range: –40°C to 150°C
产品概述
The TL4242 device is an integrated, adjustable, constant-current source that can drive
loads up to 500 mA. The output current level can be adjusted through an external resistor. The
device is designed to supply high-power LEDs. The TL4242 is provided in the DRJ (WSON) package.
Protection circuits prevent damage to the device in case of overload, short circuit, reverse
polarity, and overtemperature. The connected LEDs are protected against reverse polarity as well as
excess voltages up to 45 V.The integrated PWM input of the TL4242 permits LED brightness regulation by pulse-width
modulation (PWM). Due to the high input impedance of the PWM input, the LED driver can be operated
as a protected high-side switch.The TL4242 is characterized for operation from –40°C to 150°C.

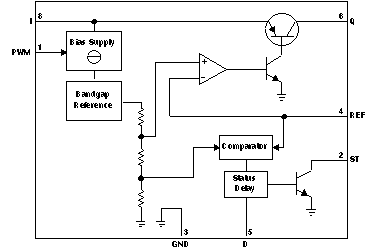

TL4242DRJR 电路图
