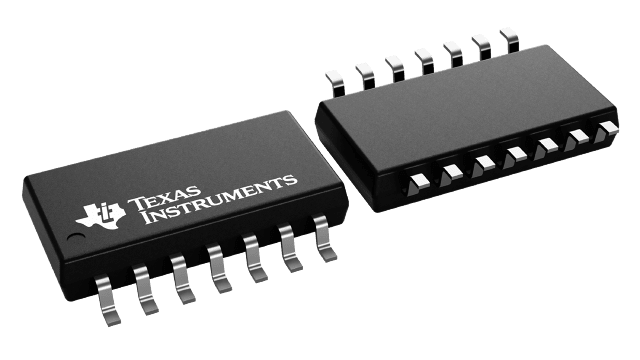

SN7438NSR
品牌：TI 封装/批号：原厂原装/22+
SN7438NSR 属性参数
- 标准包装：1
- 类别：集成电路 (IC)
- 家庭：逻辑 - 栅极和逆变器
- 系列：7400
- 逻辑类型：与非门
- 电路数：4
- 输入数：2
- 特点：开路集电极
- 电源电压：4.75 V ~ 5.25 V
- 电流 - 静态（最大值）：-
- 输出电流高，低：-，48mA
- 逻辑电平 - 低：0.8V
- 逻辑电平 - 高：2V
- 额定电压和最大 CL 时的最大传播延迟：22ns @ 5V，45pF
- 工作温度：0°C ~ 70°C
- 安装类型：表面贴装
- 供应商设备封装：14-SO
- 封装/外壳：14-SOIC（0.209"，5.30mm 宽）
- 包装：®
- 其它名称：296-28485-6
产品特性
- Package Options Include Plastic “Small Outline" Packages, Ceramic Chip Carriers and Flat Packages, and Plastic and Ceramic DIPs
- Dependable Texas Instruments Quality and Reliability
产品概述
These devices contain four independent 2-input NAND buffer gates with open-collector
outputs. The open-collector outputs require pull-up resistors to perform correctly.
They may be connected to other open-collector outputs to implement active-low
wired-OR or active-high wired-AND functions. Open-collector devices are often
used to generate high VOH levels.
The SN5438, SN54LS38, and SN54S38 are characterized for operation over
the full military temperature range of -55°C to 125°C. The SN7438,
SN74LS38, and SN74S38 are characterized for operation from 0°C to 70°C.
