SN65LVCP408PAPT 供应商
-
SN65LVCP408PAPT
品牌：TI 封装/批号：原厂原装/22+
SN65LVCP408PAPT 属性参数
- 标准包装：250
- 类别：集成电路 (IC)
- 家庭：接口 - 模拟开关，多路复用器，多路分解器
- 系列：65LVCP
- 功能：交叉点开关
- 电路：1 x 8:8
- 导通状态电阻：-
- 电压电源：单电源
- 电压 - 电源，单路/双路(±)：3.14 V ~ 3.47 V
- 电流 - 电源：-
- 工作温度：-40°C ~ 85°C
- 安装类型：表面贴装
- 封装/外壳：64-TQFP 裸露焊盘
- 供应商设备封装：64-HTQFP（10x10）
- 包装：带卷 (TR)
产品特性
- Up to 4.25 Gbps Operation
- Non-Blocking Architecture Allows Each Output to be Connected to Any Input
- 30 ps of Deterministic Jitter
- Selectable Transmit Pre-Emphasis Per Lane
- Selectable Receive Equalization
- Available Packaging 64 Pin QFP
- Propagation Delay Times: 500 ps Typical
- Inputs Electrically Compatible With CML Signal Levels
- Operates From a Single 3.3-V Supply
- Ability to 3-STATE Outputs
- Integrated Termination Resistors
- I2C™ Control Interface
- APPLICATIONS Clock Buffering/Clock MUXing Wireless Base Stations High-Speed Network Routing Telecom/Datacom XAUI 802.3ae Protocol Backplane Redundancy
- Clock Buffering/Clock MUXing
- Wireless Base Stations
- High-Speed Network Routing
- Telecom/Datacom
- XAUI 802.3ae Protocol Backplane Redundancy
产品概述
The SN65LVCP408 is a 8 × 8 non-blocking crosspoint switch in a flow-through pin-out allowing for ease in PCB layout. VML signaling is used to achieve a high-speed data throughput while using low power. Each of the output drivers includes a 8:1 multiplexer to allow any input to be routed to any output. Internal signal paths are fully differential to achieve the high signaling speeds while maintaining low signal skews. The SN65LVCP408 incorporates 100- termination resistors for those applications where board space is a premium. Built-in transmit pre-emphasis and receive equalization for superior signal integrity performance.The SN65LVCP408 is characterized for operation from –40°C to 85°C. (See operating free air condition requirements)

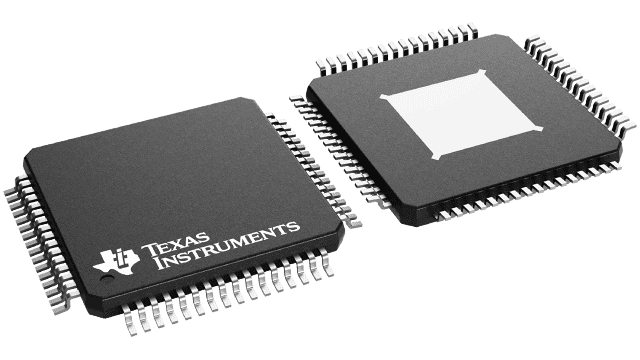

SN65LVCP408PAPT
