OPA445AU/2K5 属性参数
- 制造商：Texas Instruments
- 产品种类：运算放大器 - 运放
- 通道数量：1
- 共模抑制比（最小值）：80 dB
- 输入补偿电压：5 mV
- 输入偏流（最大值）：100 nA
- 工作电源电压：+ / - 45 V
- 安装风格：SMD/SMT

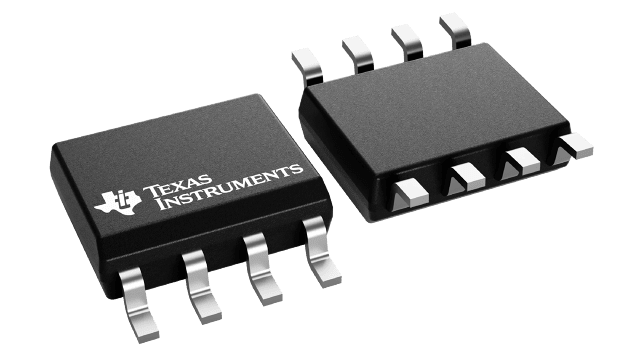

- 封装 / 箱体：SOIC-8
- 转换速度：15 V/us
- 关闭：No
- 输出电流：15 mA
- 最大工作温度：+ 85 C
- 封装：Reel
- 最小工作温度：- 25 C
- 工厂包装数量：2500
- 电源电流：4.7 mA
- 技术：BiFET
- 电压增益 dB：110 dB
产品特性
- WIDE-POWER SUPPLY RANGE: ±10V to ±45V
- HIGH SLEW RATE: 15V/µs
- LOW INPUT BIAS CURRENT: 10pA
- STANDARD-PINOUT TO-99, DIP, SO-8 PowerPAD™, AND SO-8 SURFACE-MOUNT PACKAGES
- APPLICATIONS TEST EQUIPMENT HIGH-VOLTAGE REGULATORS POWER AMPLIFIERS DATA ACQUISITION SIGNAL CONDITIONING AUDIO PIEZO DRIVERS
- TEST EQUIPMENT
- HIGH-VOLTAGE REGULATORS
- POWER AMPLIFIERS
- DATA ACQUISITION
- SIGNAL CONDITIONING
- AUDIO
- PIEZO DRIVERS
产品概述
The OPA445 is a monolithic operational amplifier capable
of operation from power supplies up to ±45V and output
currents of 15mA. It is useful in a wide variety of
applications requiring high output voltage or large
common-mode voltage swings.The OPA445's high slew rate provides wide powerbandwidth
response, which is often required for
high-voltage applications. FET input circuitry allows the
use of high-impedance feedback networks, thus minimizing
their output loading effects. Laser trimming of the input
circuitry yields low input offset voltage and drift.The OPA445 is available in standard pinout TO-99, DIP-8,
and SO-8 surface-mount packages as well as an SO-8
PowerPAD package for reducing junction temperature. It
is fully specified from -25°C to +85°C and operates from
-55°C to +125°C. A SPICE macromodel is available for
design analysis (from www.ti.com).
