OPA4330AIRGYR 供应商
-
OPA4330AIRGYR
品牌：TI 封装/批号：原厂原装/22+ -
OPA4330AIRGYR
品牌：TexasInstruments 封装/批号：14-VQFN(3.5x3.5)/18+ -
OPA4330AIRGYR
品牌： 封装/批号：TSSOP/23+
OPA4330AIRGYR 属性参数
- 标准包装：3,000
- 类别：集成电路 (IC)
- 家庭：Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
- 系列：-
- 放大器类型：断路器（零漂移）
- 电路数：4
- 输出类型：满摆幅
- 转换速率：0.16 V/µs
- 增益带宽积：350kHz
- -3db带宽：-
- 电流 - 输入偏压：200pA
- 电压 - 输入偏移：8µV
- 电流 - 电源：21µA
- 电流 - 输出 / 通道：5mA
- 电压 - 电源，单路/双路(±)：1.8 V ~ 5.5 V，±0.9 V ~ 2.75 V
- 工作温度：-40°C ~ 150°C
- 安装类型：表面贴装
- 封装/外壳：14-VFQFN 裸露焊盘
- 供应商设备封装：14-VQFN 裸露焊盘（3.5x3.5）
- 包装：带卷 (TR)
产品特性
- Unmatched Price Performance
- Low Offset Voltage: 50 µV (Maximum)
- Zero Drift: 0.25 µV/°C (Maximum)
- Low Noise: 1.1 µVPP, 0.1 Hz to 10 Hz
- Quiescent Current: 35 µA (Maximum)
- Supply Voltage: 1.8 V to 5.5 V
- Rail-to-Rail Input and Output
- Internal EMI Filtering
- microSize Packages: DSBGA, SC70, VQFN
产品概述
The OPA330 series of CMOS operational
amplifiers offer precision performance at a very competitive price. These devices are members of
the Zerø-Drift family of amplifiers which use a proprietary auto-calibration technique to
simultaneously provide low offset voltage (50-µV maximum) and near-zero drift over time and
temperature at only 35 µA (maximum) of quiescent current. The OPA330 family features rail-to-rail
input and output in addition to near-flat 1/f noise, making this amplifier ideal for many
applications and much easier to design into a system. These devices are optimized for low-voltage
operation as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V).The OPA330 (single version) is available in the 5-pin DSBGA, 5-pin SC70, 5-pin SOT-23,
and 8-pin SOIC packages. The OPA2330 (dual version) is offered in 3 mm × 3 mm, 8-pin SON, 8-pin
VSSOP, and 8-pin SOIC packages. The OPA4330 is offered in the standard 14-pin SOIC and 14-pin TSSOP
packages, as well as in the space-saving 14-pin VQFN package. All versions are specified for
operation from –40°C to 125°C.

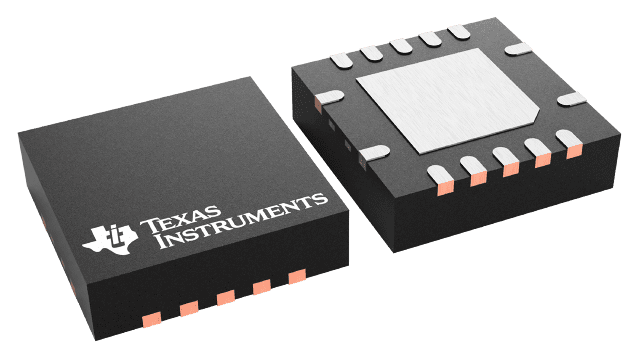

OPA4330AIRGYR 电路图
