MSP430FG479IZQWR 供应商
-
MSP430FG479IZQWR
品牌：TI 封装/批号：原厂原装/22+ -
MSP430FG479IZQWR

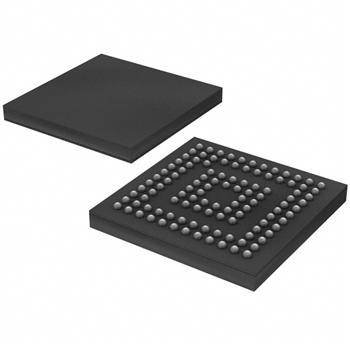

品牌：TI 封装/批号：113-BGA Microstar Junior (7x7)/21+
MSP430FG479IZQWR 属性参数
- 产品培训模块：The Ultra-Low Power MSP430MSP430 OverviewMSP430 Design ToolsMSP430 PeripheralsPortable Medical Solutions with MSP430MSP430 for Utility Metering SolutionsMSP430: How to JTAGMSP430, How To Use the Clock SystemGrace Software Graphical User InterfaceMCU OverviewDriver LibraryMSP430Ware Overview
- 标准包装：1
- 类别：集成电路 (IC)
- 家庭：嵌入式 - 微控制器，
- 系列：MSP430x4xx
- 核心处理器：RISC
- 芯体尺寸：16-位
- 速度：8MHz
- 连通性：I²C，IrDA，LIN，SCI，SPI，UART/USART
- 外围设备：欠压检测/复位，LCD，PWM，WDT
- 输入/输出数：48
- 程序存储器容量：60KB（60K x 8 + 256B）
- 程序存储器类型：闪存
- EEPROM 大小：-
- RAM 容量：2K x 8
- 电压 - 电源 (Vcc/Vdd)：1.8 V ~ 3.6 V
- 数据转换器：A/D 5x16b，D/A 2x12b
- 振荡器型：内部
- 工作温度：-40°C ~ 85°C
- 封装/外壳：113-VFBGA
- 包装：®
- 其它名称：296-24306-6
产品特性
- Low supply-voltage range: 1.8 V to 3.6 V
- Ultra-low power consumption Active mode: 262 µA at 1 MHz, 2.2 V Standby mode: 1.1 µA Off mode (RAM retention): 0.1 µA
- Active mode: 262 µA at 1 MHz, 2.2 V
- Standby mode: 1.1 µA
- Off mode (RAM retention): 0.1 µA
- Five power-saving modes
- Wakeup from standby mode in less than 6 µs
- 16-bit RISC architecture, extended memory, 125‑ns instruction cycle time
- 16-bit sigma-delta analog-to-digital converter (ADC) with internal reference and five differential analog inputs
- Dual 12-bit digital-to-analog converters (DACs)
- Dual configurable operational amplifiers
- Dual configurable operational amplifiers
- 16-bit Timer_A with three capture/compare registers
- 16-bit Timer_B with seven capture/compare-with-shadow registers
- Two universal serial communication interfaces (USCIs) USCI_A0 Enhanced UART supports automatic baud-rate detection IrDA encoder and decoder Synchronous SPI USCI_B0 I2CSynchronous SPI
- USCI_A0 Enhanced UART supports automatic baud-rate detection IrDA encoder and decoder Synchronous SPI
- Enhanced UART supports automatic baud-rate detection
- IrDA encoder and decoder
- Synchronous SPI
- USCI_B0 I2CSynchronous SPI
- I2C
- Synchronous SPI
- Integrated LCD Driver With Contrast Control for Up to 128 Segments
- Brownout detector
- Basic timer with real-time clock (RTC) feature
- Supply Voltage Supervisor/Monitor With Programmable Level Detection
- On-Chip Comparator
- Serial onboard programming, programmable code protection by security fuse
- Bootloader
- Device Comparison summarizes the available family members MSP430FG477: 32KB + 256 bytes of flash, 2KB of RAM MSP430FG478: 48KB + 256 bytes of flash, 2KB of RAM MSP430FG479: 60KB + 256 bytes of flash, 2KB of RAM
- MSP430FG477: 32KB + 256 bytes of flash, 2KB of RAM
- MSP430FG478: 48KB + 256 bytes of flash, 2KB of RAM
- MSP430FG479: 60KB + 256 bytes of flash, 2KB of RAM
- Available in 113-ball MicroStar Junior™ BGA (ZQW), 113-ball nFBGA (ZCA), and 80-pin QFP (PN) packages (see Device Comparison)
产品概述
The Texas Instruments MSP430™ family of
ultra-low-power microcontrollers consists of several devices featuring different sets of
peripherals targeted for various applications. The architecture, combined with five low-power
modes, is optimized to achieve extended battery life in portable measurement applications. The
device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that
contribute to maximum code efficiency.The digitally controlled oscillator (DCO) allows wake-up from
low-power modes to active mode in less than 6 µs.The MSP430FG47x is a microcontroller configuration with two 16-bit timers, a basic
timer with a real-time clock, a high-performance 16-bit sigma-delta ADC, dual 12-bit DACs, two
configurable operational amplifiers, two universal serial communication interface, 48 I/O pins, and
a liquid crystal display driver.For complete module descriptions, see the MSP430x4xx Family User’s Guide.
