MSP430FE4232IPMR 供应商
-
MSP430FE4232IPMR
品牌：TI 封装/批号：原厂原装/22+ -
MSP430FE4232IPMR
品牌：TI(德州仪器) 封装/批号：LQFP-64(10x10)/2022+
MSP430FE4232IPMR 属性参数
- 产品培训模块：The Ultra-Low Power MSP430MSP430 OverviewMSP430 Design ToolsMSP430 PeripheralsMSP430x2xx/4xx and Wireless OverviewPortable Medical Solutions with MSP430MSP430 for Utility Metering SolutionsMSP430: How to JTAGMSP430, How To Use the Clock SystemGrace Software Graphical User InterfaceMCU OverviewDriver LibraryMSP430Ware Overview
- 标准包装：1
- 类别：集成电路 (IC)
- 家庭：嵌入式 - 微控制器，
- 系列：MSP430x4xx
- 核心处理器：RISC
- 芯体尺寸：16-位
- 速度：8MHz
- 连通性：SPI，UART/USART
- 外围设备：欠压检测/复位，LCD，POR，PWM，WDT
- 输入/输出数：14
- 程序存储器容量：8KB（8K x 8 + 256B）
- 程序存储器类型：闪存
- EEPROM 大小：-
- RAM 容量：256 x 8
- 电压 - 电源 (Vcc/Vdd)：1.8 V ~ 3.6 V
- 数据转换器：A/D 2x16b
- 振荡器型：内部
- 工作温度：-40°C ~ 85°C
- 封装/外壳：64-LQFP
- 包装：®
- 其它名称：296-23730-6
产品特性
- Low Supply-Voltage Range, 2.7 V to 3.6 V
- Ultra-Low-Power Consumption: Active Mode: 400 µA at 1 MHz, 3.0 V Standby Mode: 1.6 µA Off Mode (RAM Retention): 0.1 µA
- Active Mode: 400 µA at 1 MHz, 3.0 V
- Standby Mode: 1.6 µA
- Off Mode (RAM Retention): 0.1 µA
- Five Power-Saving Modes
- Wake-Up From Standby Mode in Less Than 6 µs
- Frequency-Locked Loop, FLL+
- 16-Bit RISC Architecture, 125-ns Instruction Cycle Time
- Embedded Signal Processing for Single-Phase Energy Metering With Integrated Analog Front-End and Temperature Sensor (ESP430CE1B)
- 16-Bit Timer_A With Three Capture/Compare Registers
- Integrated LCD Driver for 128 Segments
- Serial Communication Interface (USART), Asynchronous UART, or Synchronous SPI Selectable by Software
- Brownout Detector
- Supply Voltage Supervisor/Monitor With Programmable Level Detection
- Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse
- Bootstrap Loader in Flash Devices
- Family Members Include: MSP430FE4232 8KB + 256B Flash Memory, 256B RAM MSP430FE4242 12KB + 256B Flash Memory, 512B RAM MSP430FE4252 16KB + 256B Flash Memory, 512B RAM MSP430FE4272 32KB + 256B Flash Memory, 1KB RAM
- MSP430FE4232 8KB + 256B Flash Memory, 256B RAM
- MSP430FE4242 12KB + 256B Flash Memory, 512B RAM
- MSP430FE4252 16KB + 256B Flash Memory, 512B RAM
- MSP430FE4272 32KB + 256B Flash Memory, 1KB RAM
- Available in 64-Pin Quad Flat Pack (QFP)
- For Complete Module Descriptions, See the MSP430x4xx Family User’s Guide, Literature Number SLAU056
产品概述
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features
a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 µs.The MSP430FE42x2 devices are microcontroller configurations with two independent 16-bit sigma-delta analog-to-digital (A/D) converters and embedded signal processor core used to measure and calculate single-phase energy in both 2-wire and 3-wire configurations. Also included is a built-in 16-bit timer, 128 LCD segment drive capability, and 14 I/O pins.Typical applications include 2-wire and 3-wire single-phase metering.

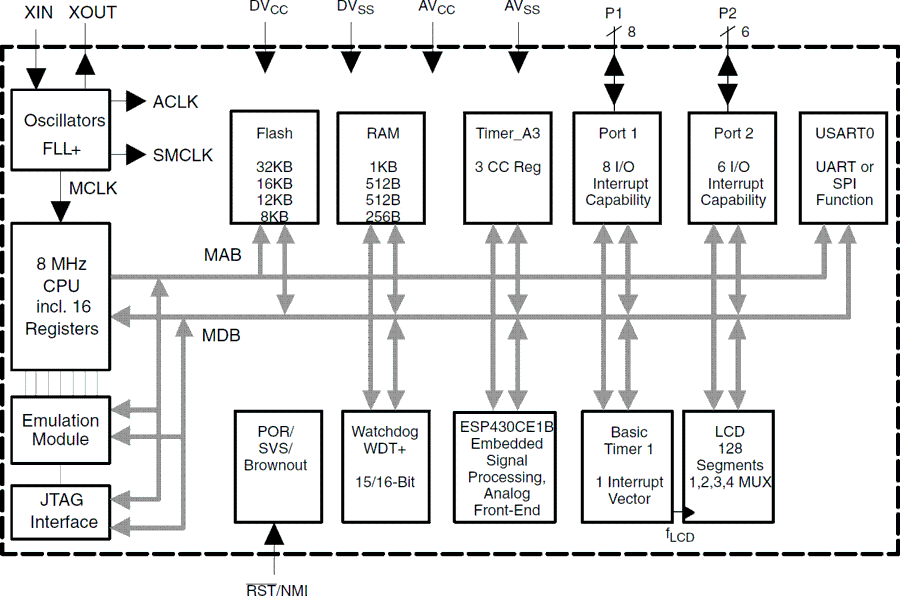

MSP430FE4232IPMR 电路图
