MSP430F47163IPZR

Texas Instruments 嵌入式 - 微控制器，

MSP430F47163IPZR 供应商

MSP430F47163IPZR 属性参数

  • 产品培训模块：The Ultra-Low Power MSP430MSP430 OverviewMSP430 Design ToolsMSP430 PeripheralsPortable Medical Solutions with MSP430MSP430 for Utility Metering SolutionsMSP430: How to JTAGMSP430, How To Use the Clock SystemGrace Software Graphical User InterfaceMCU OverviewDriver LibraryMSP430Ware Overview
  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：嵌入式 - 微控制器，
  • 系列：MSP430x4xx
  • 核心处理器：RISC
  • 芯体尺寸：16-位
  • 速度：16MHz
  • 连通性：I²C，IrDA，LIN，SCI，SPI，UART/USART
  • 外围设备：欠压检测/复位，DMA，LCD，POR，PWM，WDT
  • 输入/输出数：72
  • 程序存储器容量：92KB（92K x 8）
  • 程序存储器类型：闪存
  • EEPROM 大小：-
  • RAM 容量：4K x 8
  • 电压 - 电源 (Vcc/Vdd)：1.8 V ~ 3.6 V
  • 数据转换器：A/D 3x16b
  • 振荡器型：内部
  • 工作温度：-40°C ~ 85°C
  • 封装/外壳：100-LQFP
  • 包装：®
  • 其它名称：296-25774-6

产品特性

  • Low Supply-Voltage Range: 1.8 V to 3.6 V
  • Ultralow Power Consumption Active Mode: 350 µA at 1 MHz, 2.2 V Standby Mode: 1.1 µA Off Mode (RAM Retention): 0.2 µA
  • Active Mode: 350 µA at 1 MHz, 2.2 V
  • Standby Mode: 1.1 µA
  • Off Mode (RAM Retention): 0.2 µA
  • Five Power-Saving Modes
  • Wake-Up From Standby Mode in Less Than 6 µs
  • 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
  • Three-Channel Internal DMA
  • Three, Six or Seven 16-Bit Sigma-Delta Analog-to-Digital (A/D) Converters With Differential PGA Inputs
  • 16-Bit Timer_B With Three Capture/Compare-With-Shadow Registers
  • 16-Bit Timer_A With Three Capture/Compare Registers
  • On-Chip Comparator
  • Four Universal Serial Communication Interface (USCI) Modules USCI_A0 and USCI_A1 Enhanced UART Supporting Auto-Baudrate Detection IrDA Encoder and Decoder Synchronous SPI USCI_B0 and USCI_B1 I2C Synchronous SPI
  • USCI_A0 and USCI_A1 Enhanced UART Supporting Auto-Baudrate Detection IrDA Encoder and Decoder Synchronous SPI
  • Enhanced UART Supporting Auto-Baudrate Detection
  • IrDA Encoder and Decoder
  • Synchronous SPI
  • USCI_B0 and USCI_B1 I2C Synchronous SPI
  • I2C
  • Synchronous SPI
  • Integrated LCD Driver With Contrast Control for Up to 160 Segments
  • Basic Timer With Real-Time Clock Feature
  • 32-Bit Hardware Multiplier
  • Brownout Detector
  • Supply Voltage Supervisor/Monitor With Programmable Level Detection
  • Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
  • Bootstrap Loader
  • On-Chip Emulation Module
  • Family Members Include MSP430F47163: 92KB Flash, 4KB RAM 3 Sigma-Delta ADCs MSP430F47173: 92KB Flash, 8KB RAM 3 Sigma-Delta ADCs MSP430F47183: 116KB Flash, 8KB RAM 3 Sigma-Delta ADCs MSP430F47193: 120KB Flash, 4KB RAM 3 Sigma-Delta ADCs MSP430F47126: 56KB Flash, 4KB RAM 6 Sigma-Delta ADCs MSP430F47166: 92KB Flash, 4KB RAM 6 Sigma-Delta ADCs MSP430F47176: 92KB Flash, 8KB RAM 6 Sigma-Delta ADCs MSP430F47186: 116KB Flash, 8KB RAM 6 Sigma-Delta ADCs MSP430F47196: 120KB Flash, 4KB RAM 6 Sigma-Delta ADCs MSP430F47127: 56KB Flash, 4KB RAM 7 Sigma-Delta ADCs MSP430F47167: 92KB Flash, 4KB RAM 7 Sigma-Delta ADCs MSP430F47177: 92KB Flash, 8KB RAM 7 Sigma-Delta ADCs MSP430F47187: 116KB Flash, 8KB RAM 7 Sigma-Delta ADCs MSP430F47197: 120KB Flash, 4KB RAM 7 Sigma-Delta ADCs
  • MSP430F47163: 92KB Flash, 4KB RAM 3 Sigma-Delta ADCs
  • MSP430F47173: 92KB Flash, 8KB RAM 3 Sigma-Delta ADCs
  • MSP430F47183: 116KB Flash, 8KB RAM 3 Sigma-Delta ADCs
  • MSP430F47193: 120KB Flash, 4KB RAM 3 Sigma-Delta ADCs
  • MSP430F47126: 56KB Flash, 4KB RAM 6 Sigma-Delta ADCs
  • MSP430F47166: 92KB Flash, 4KB RAM 6 Sigma-Delta ADCs
  • MSP430F47176: 92KB Flash, 8KB RAM 6 Sigma-Delta ADCs
  • MSP430F47186: 116KB Flash, 8KB RAM 6 Sigma-Delta ADCs
  • MSP430F47196: 120KB Flash, 4KB RAM 6 Sigma-Delta ADCs
  • MSP430F47127: 56KB Flash, 4KB RAM 7 Sigma-Delta ADCs
  • MSP430F47167: 92KB Flash, 4KB RAM 7 Sigma-Delta ADCs
  • MSP430F47177: 92KB Flash, 8KB RAM 7 Sigma-Delta ADCs
  • MSP430F47187: 116KB Flash, 8KB RAM 7 Sigma-Delta ADCs
  • MSP430F47197: 120KB Flash, 4KB RAM 7 Sigma-Delta ADCs
  • Available in a 100-Pin Plastic Quad Flatpack (QFP) Package
  • For Complete Module Descriptions, See the MSP430x4xx Family User’s Guide, Literature Number SLAU056
  • For E-Meter Reference Design and Software, See Implementation of aThree-Phase Electronic Watt-Hour Meter using the MSP430F471xx, Literature Number SLAA409

产品概述

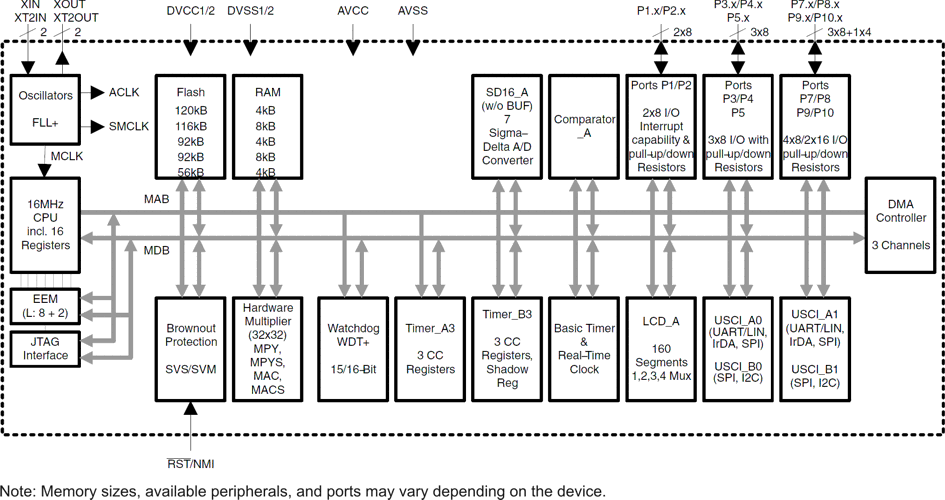

The Texas InstrumentsMSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portablemeasurement applications. The devices feature a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency.The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6µs.The MSP430F471xx series are microcontroller configurations targeted to single-phase and poly-phase electricity meters with three, six, or seven 16-bit sigma-delta A/D converters. Each channel has a differential input pair and programmable input gain. Also integrated are two 16-bit timers, four universal serial communication interfaces (USCI), DMA, 68 I/O pins, and a liquid crystal driver (LCD) with integrated contrast control.
