LMV1091TMX/NOPB 供应商
-
LMV1091TMX/NOPB
品牌：TI 封装/批号：原厂原装/22+ -
LMV1091TMX/NOPB
品牌：TI(德州仪器) 封装/批号：DSBGA-25/2022+
LMV1091TMX/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 产品：Class-AB
- 输出类型：1-Channel Mono
- 可用增益调整：36 dB
- 共模抑制比（最小值）：60 dB (Typ)
- THD + 噪声：0.1 %
- 工作电源电压：3 V, 5 V
- 电源电流：0.6 mA at 5 V
- 最大工作温度：+ 85 C
- 安装风格：SMD/SMT
- 封装 / 箱体：Micro SMD
- 封装：Reel
- 音频负载电阻：100000 Ohms
- 输入信号类型：Differential
- 最小工作温度：- 40 C
- 输出信号类型：Differential
- 工厂包装数量：3000
- 电源类型：Single
- Supply Voltage - Max：5.5 V
- Supply Voltage - Min：2.7 V
产品特性
- No Loss of Voice Intelligibility
- Low Power Consumption
- Shutdown Function
- No added Processing Delay
- Differential Outputs
- Adjustable 12 - 54dB Gain
- Excellent RF Immunity

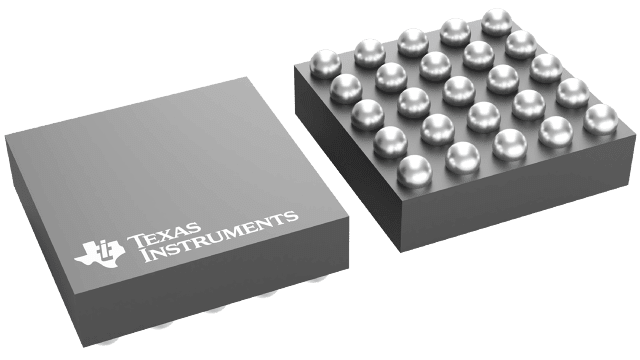

- Available in a 25–Bump DSBGA Package
- Far Field Noise Suppression Electrical (FFNSE at f = 1kHz): 34dB (typ)
- SNRIE: 26dB (typ)
- Supply Voltage: 2.7V to 5.5V
- Supply Current: 600μA (typ)
- Standby Current: 0.1μA (typ)
- Signal-to-Noise Ratio (Voice band): 65dB (typ)
- Total Harmonic Distortion + Noise: 0.1% (typ)
- PSRR (217Hz): 99dB (typ)
产品概述
The LMV1091 is a fully analog dual differential input, differential output, microphone
array amplifier designed to reduce background acoustic noise, while delivering superb speech
clarity in voice communication applications.The LMV1091 preserves near-field voice signals within 4cm of the microphones while
rejecting far-field acoustic noise greater than 50cm from the microphones. Up to 20dB of far-field
rejection is possible in a properly configured and using ±0.5dB matched micropohones.Part of the Powerwise™ family of energy efficient solutions, the LMV1091 consumes only
600μA of supply current providing superior performance over DSP solutions consuming greater than
ten times the power.The dual microphone inputs and the processed signal output are differential to provide
excellent noise immunity. The microphones are biased with an internal low-noise bias supply.

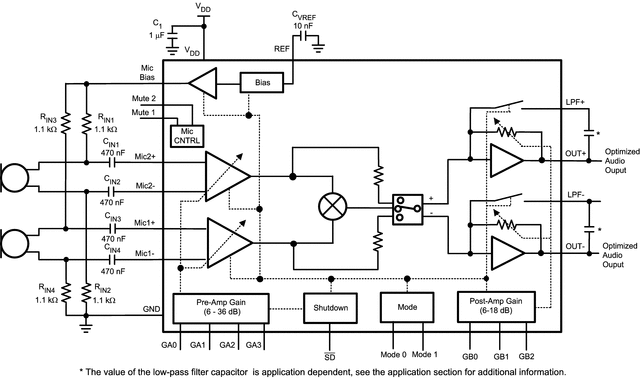

LMV1091TMX/NOPB 电路图
