LMS1587CSX-3.3/NOPB 供应商
-
LMS1587CSX-3.3/NOPB
品牌：TI 封装/批号：原厂原装/22+ -
LMS1587CSX-3.3/NOPB
品牌：NSC 封装/批号：SOT23-6/23+
LMS1587CSX-3.3/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 最大输入电压：13 V
- 输出电压：3.3 V
- 回动电压（最大值）：1.3 V at 3 A
- 输出电流：3 A
- 负载调节：0.3 %
- 输出端数量：1
- 输出类型：Fixed
- 最大工作温度：+ 125 C
- 安装风格：SMD/SMT

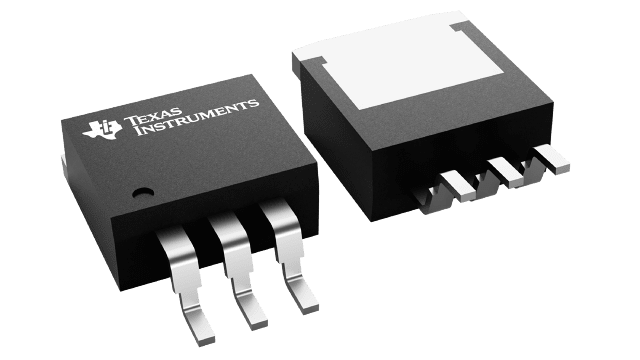

- 封装 / 箱体：TO-263
- 线路调整率：0.01 %
- 最小工作温度：0 C
- 封装：Reel
- 工厂包装数量：500
产品特性
- Fast Transient Response
- Available in Adjustable, 1.5V, and 3.3V versions
- Current Limiting and Thermal Protection
- Commercial Temp. Tange: 0°C to 125°C
- Industrial Temp. Range: −40°C to 125°C
- Line Regulation 0.005% (typical)
- Load Regulation 0.05% (typical)
- Direct Replacement for LT 1585A/87
产品概述
The LMS1585A and LMS1587 are low dropout positive regulators with output load current of
5A and 3A respectively. Their low dropout voltage (1.2V) and fast transient response make them an
excellent solution for low voltage microprocessor applications.The LMS1585A/87 are available in adjustable versions, which can set the output voltage
with only two external resistors. In addition, they are also available in 1.5V and 3.3V fixed
voltage versions.The LMS1585A/87 circuits include a zener trimmed bandgap reference, current limiting and
thermal shutdown. The LMS1585A/87 series are available in KTT (TO-263) and NDE (TO-220)
packages.
LMS1587CSX-3.3/NOPB 数据手册
LMS1587CSX-3.3/NOPB
LMS1587CSX-3.3/NOPB 电路图
