LMK02000ISQ/NOPB 供应商
-
LMK02000ISQ/NOPB
品牌：TI 封装/批号：原厂原装/22+ -
LMK02000ISQ/NOPB
品牌：TI(德州仪器) 封装/批号：WQFN-48(7x7)/2022+ -
LMK02000ISQ/NOPB
品牌：NSC/ELNAF 封装/批号：QFN/1921+
LMK02000ISQ/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 封装：Reel
- 最大工作温度：+ 85 C
- 最小工作温度：- 40 C
- 工厂包装数量：250
产品特性
- 20 fs Additive Jitter
- Integrated Integer-N PLL with Outstanding Normalized Phase Noise Contribution of -224 dBc/Hz
- Clock Output Frequency Range of 1 to 800 MHz
- 3 LVDS and 5 LVPECL Clock Outputs
- Dedicated Divider and Delay Blocks on Each Clock Output
- Pin Compatible Family of Clocking Devices
- 3.15 to 3.45 V Operation

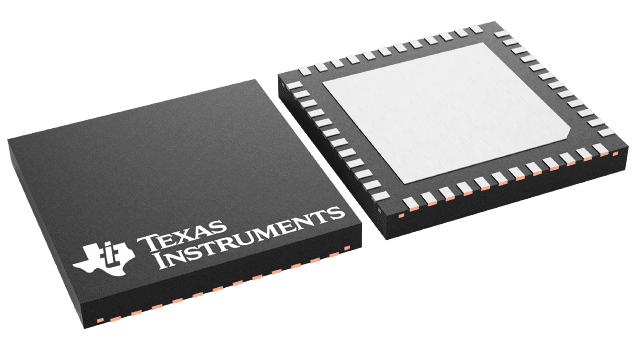

- Package: 48 Pin WQFN (7.0 x 7.0 x 0.8 mm)
产品概述
The LMK02000 precision clock conditioner combines the functions of jitter
cleaning/reconditioning, multiplication, and distribution of a reference clock. The device
integrates a high performance Integer-N Phase Locked Loop (PLL), three LVDS, and five LVPECL clock
output distribution blocks.Each clock distribution block includes a programmable divider, a phase synchronization
circuit, a programmable delay, a clock output mux, and an LVDS or LVPECL output buffer. This allows
multiple integer-related and phase-adjusted copies of the reference to be distributed to eight
system components.The clock conditioner comes in a 48-pin WQFN package and is footprint compatible with
other clocking devices in the same family.
LMK02000ISQ/NOPB 电路图
