LM9076QBMA-3.3/NOPB 供应商
-
LM9076QBMA-3.3/NOPB
品牌：TI 封装/批号：原厂原装/22+ -
LM9076QBMA-3.3/NOPB
品牌：TI(德州仪器) 封装/批号：SOIC-8/2022+
LM9076QBMA-3.3/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 最大输入电压：40 V
- 输出电压：3.3 V
- 回动电压（最大值）：250 mV
- 输出电流：150 mA
- 负载调节：42 mV
- 输出端数量：1
- 输出类型：Fixed
- 最大工作温度：+ 125 C
- 安装风格：SMD/SMT

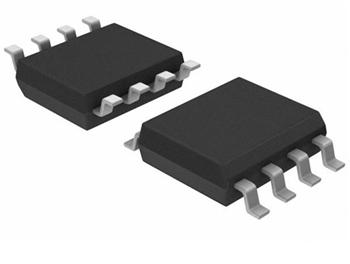

- 封装 / 箱体：SO-8
- Input Voltage MIN：5.35 V
- 线路调整率：17 mV
- 最小工作温度：- 40 C
- PSRR / 脉动抑制（典型值）：60 dB
- 工厂包装数量：95
- 电压调节准确度：+/- 3 %
产品特性
- AEC-Q100 Grade1 Qualified (-40°C to +125°C)
- Available with 5.0V or 3.3V Output Voltage
- Ultra Low Ground Pin Current, 25 μA Typical for 100 μA Load
- VOUT Initial Accuracy of ±1.5%
- VOUT Accurate to ±3% Over Load and Temperature Conditions
- Low Dropout Voltage, 200 mV Typical with 150 mA Load
- Low Off State Ground Pin Current for LM9076QBMA
- Delayed RESET Output Pin for Low VOUT Detection
- +70V/-50V Voltage Transients
- Operational VIN up to +40V
产品概述
The LM9076Q is a ±3%, 150 mA logic controlled voltage regulator. The regulator features
an active low delayed reset output flag which can be used to reset a microprocessor system at
turn-ON and in the event that the regulator output voltage falls below a minimum value. An external
capacitor programs a delay time interval before the reset output pin can return high.Designed for automotive and industrial applications, the LM9076Q contains a variety of
protection features such as thermal shutdown, input transient protection and a wide operating
temperature range. The LM9076Q uses an PNP pass transistor which allows low drop-out voltage
operation.
LM9076QBMA-3.3/NOPB 电路图
