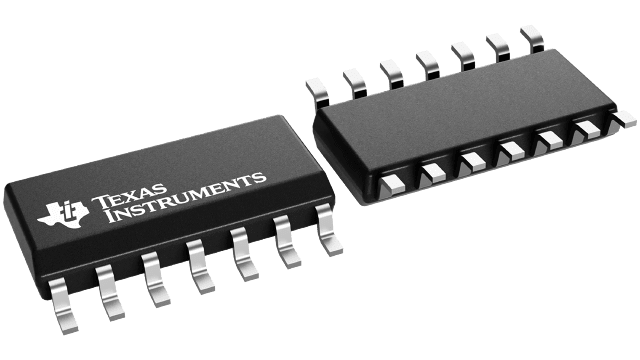

品牌：TI(德州仪器) 封装/批号：SOIC-14/2022+
LM6144AIMX/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 通道数量：4
- 共模抑制比（最小值）：66 dB
- 输入补偿电压：1 mV at 5 V
- 工作电源电压：3 V, 5 V, 9 V, 12 V, 15 V, 18 V
- 安装风格：SMD/SMT
- 封装 / 箱体：SOIC-14 Narrow
- 转换速度：25 V/us at 5 V
- 关闭：No
- 最大工作温度：+ 85 C
- 封装：Reel
- 最小工作温度：- 40 C
- 工厂包装数量：2500
- 电源电流：3.2 mA at 5 V
- Supply Voltage - Max：24 V
- Supply Voltage - Min：1.8 V
- 电压增益 dB：108.63 dB
产品特性
- Rail-to-rail Input CMVR −0.25V to 5.25V
- Rail-to-Rail Output Swing 0.005V to 4.995V
- Wide Gain-Bandwidth: 17MHz at 50kHz (typ)
- Slew Rate: Small Signal, 5V/μs Large Signal, 30V/μs
- Small Signal, 5V/μs
- Large Signal, 30V/μs
- Low Supply Current 650μA/Amplifier
- Wide Supply Range 1.8V to 24V
- CMRR 107dB
- Gain 108dB with RL = 10k
- PSRR 87dB
产品概述
Using patent pending new circuit topologies, the LM6142/LM6144 provides new levels of
performance in applications where low voltage supplies or power limitations previously made
compromise necessary. Operating on supplies of 1.8V to over 24V, the LM6142/LM6144 is an excellent
choice for battery operated systems, portable instrumentation and others.The greater than rail-to-rail input voltage range eliminates concern over exceeding the
common-mode voltage range. The rail-to-rail output swing provides the maximum possible dynamic
range at the output. This is particularly important when operating on low supply voltages.High gain-bandwidth with 650μA/Amplifier supply current opens new battery powered
applications where previous higher power consumption reduced battery life to unacceptable levels.
The ability to drive large capacitive loads without oscillating functionally removes this common
problem.

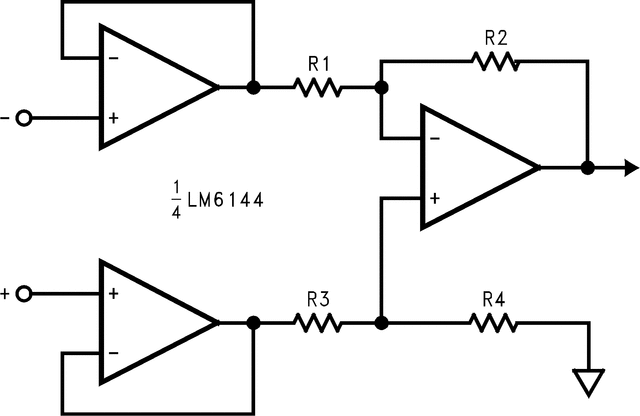

LM6144AIMX/NOPB 电路图
