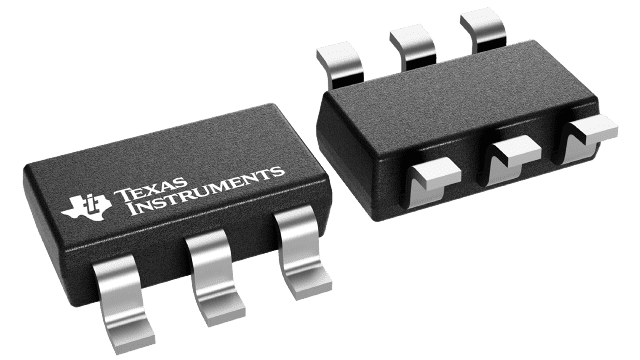

LM5050MK-2/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 产品：MOSFET Gate Drivers
- 类型：Charge Pump Gate Driver For External N-Channel MOSFET
- Supply Voltage - Max：75 V
- Supply Voltage - Min：6 V
- 电源电流：0.355 mA
- 最大工作温度：+ 125 C
- 安装风格：SMD/SMT
- 封装 / 箱体：TSOT-6
- 封装：Reel
- 最小工作温度：- 40 C
- 激励器数量：1
- 输出端数量：1
- 关闭时间（最大值）：450 ns
- 工作电源电压：6 V to 75 V
- 输出电流：125 uA
- 输出电压：6 V to 75 V
- 工厂包装数量：1000
产品特性
- Wide Operating Input Voltage Range: +6V to +75V
- +100 Volt Transient Capability
- Charge Pump Gate Driver for External N-Channel MOSFET
- MOSFET Diagnostic Test Mode
- Fast 50ns Response to Current Reversal
- 2A Peak Gate Turn-off Current
- Minimum VDS Clamp for Faster Turn-off
- Package: SOT-6 (Thin SOT23-6)
产品概述
The LM5050-2 High Side OR-ing FET Controller operates in conjunction with an external
MOSFET as an ideal diode rectifier when connected in series with a power source. This OR-ing
controller allows MOSFETs to replace diode rectifiers in power distribution networks thus reducing
both power loss and voltage drops.The LM5050-2 controller provides charge pump gate drive for an external N-Channel MOSFET
and a fast response comparator to turn off the FET when current flows in the reverse direction. The
LM5050-2 can connect power supplies ranging from +6V to +75V and can withstand transients up to
+100V.The LM5050-2 also provides a FET test diagnostic mode which allows the system controller
to test for shorted MOSFETs.
