LM4808M/NOPB 供应商
-

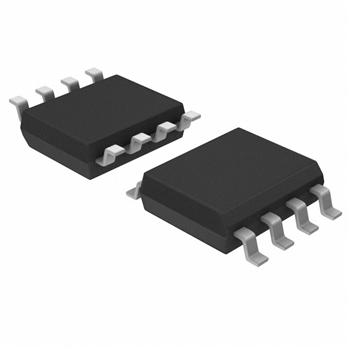

LM4808M/NOPB
品牌：TI 封装/批号：原厂原装/22+ -
LM4808M/NOPB
品牌：NS/ELNAF 封装/批号：SOP8/1911+
LM4808M/NOPB 属性参数
- 标准包装：95
- 类别：集成电路 (IC)
- 家庭：线性 - 音頻放大器
- 系列：Boomer®
- 类型：AB 类
- 输出类型：耳机，2-通道（立体声）
- 在某负载时最大输出功率 x 通道数量：150mW x 2 @ 16 欧姆
- 电源电压：2 V ~ 5.5 V
- 特点：消除爆音
- 安装类型：表面贴装
- 供应商设备封装：8-SOIC
- 封装/外壳：8-SOIC（0.154", 3.90mm 宽）
- 包装：管件
- 其它名称：*LM4808M *LM4808M/NOPB LM4808M
产品特性
- WSON, VSSOP, and SOIC Surface Mount Packaging
- Switch On/Off Click Suppression
- Excellent Power Supply Ripple Rejection
- Unity-Gain Stable
- Minimum External Components
- THD+N at 1kHz at 105mW Continuous Average Output Power Into 16Ω 0.1 % (typ)
- THD+N at 1kHz at 70mW Continuous Average Output Power Into 32Ω 0.1 % (typ)
- Output Power at 0.1% THD+N at 1kHz Into 32Ω 70 mW (typ)
产品概述
The LM4808 is a dual audio power amplifier capable of delivering 105mW per channel of
continuous average power into a 16Ω load with 0.1% (THD+N) from a 5V power supply.Boomer audio power amplifiers were designed specifically to provide high quality output
power with a minimal amount of external components using surface mount packaging. Since the LM4808
does not require bootstrap capacitors or snubber networks, it is optimally suited for low-power
portable systems.The unity-gain stable LM4808 can be configured by external gain-setting resistors.
LM4808M/NOPB 数据手册
LM4808M/NOPB
LM4808M/NOPB 电路图
