LM431ACZ/NOPB 供应商
-
LM431ACZ/NOPB
品牌：TI 封装/批号：原厂原装/22+ -
LM431ACZ/NOPB
品牌：NSC 封装/批号：SOT-453/23+ -
LM431ACZ/NOPB
品牌：TI 封装/批号：TSSOP/23+
LM431ACZ/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 产品：Voltage References
- 拓扑结构：Shunt References
- 参考类型：Adjustable
- 输出电压：2.495 V to 37 V
- 初始准确度：2 %
- 平均温度系数（典型值）：50 PPM/C
- 串联 VREF - 输入电压（最大值）：37 V
- 分流电流（最大值）：100 mA
- 最大工作温度：+ 70 C

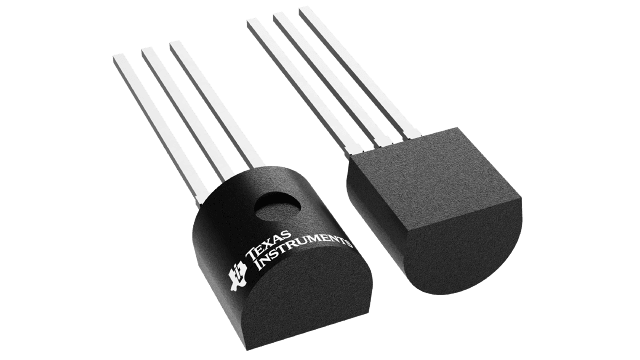

- 封装 / 箱体：TO-92
- 封装：Bulk
- 最小工作温度：0 C
- 安装风格：Through Hole
- 工厂包装数量：1800
产品特性
- Average Temperature Coefficient 50 ppm/°C
- Temperature Compensated for Operation Over the Full Temperature Range
- Programmable Output Voltage
- Fast Turnon Response
- Low-Output Noise
- Low-Dynamic Output Impedance
- Available in Space-Saving SOIC-8, SOT-23, and TO-92 Packages
产品概述
The LM431 is a 3-terminal adjustable shunt regulator with ensured temperature stability
over the entire temperature range of operation. The output voltage may be set at any level greater
than 2.5 V (VREF) up to 36 V merely by selecting two external resistors that
act as a voltage divided network. Due to the sharp turnon characteristics this device is an
excellent replacement for many Zener diode applications.The LM431 is available in space-saving SOIC-8, SOT-23, and TO-92 packages.
LM431ACZ/NOPB 数据手册
LM431ACZ/NOPB
LM431ACZ/NOPB 电路图
