LM1458M/NOPB 供应商
-
LM1458M/NOPB
品牌：TI 封装/批号：原厂原装/22+ -
LM1458M/NOPB
品牌：NS 封装/批号：SOP/21+ -
LM1458M/NOPB
品牌：TI(德州仪器) 封装/批号：SOIC-8/2022+ -
LM1458M/NOPB
品牌：TI 封装/批号：原厂原封装/新批号
LM1458M/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 通道数量：2
- 共模抑制比（最小值）：70 dB
- 输入补偿电压：6 mV
- 安装风格：SMD/SMT
- 封装 / 箱体：SOIC-8
- 转换速度：0.5 V/us
- 关闭：No
- 最大工作温度：+ 70 C
- 封装：Tube
- 最小工作温度：0 C
- 工厂包装数量：95
- 电源电流：1.5 mA
- 技术：Bipolar
- 电压增益 dB：104.08 dB
产品特性
- No Frequency Compensation Required
- Short-Circuit Protection
- Wide Common-Mode and Differential Voltage Ranges
- Low-Power Consumption
- 8-Lead TO-99 and 8-Lead PDIP
- No Latch Up When Input Common Mode Range is Exceeded
产品概述
The LM1458 and the LM1558 are general purpose dual operational amplifiers. The two
amplifiers share a common bias network and power supply leads. Otherwise, their operation is
completely independent.The LM1458 is identical to the LM1558 except that the LM1458 has its specifications
guaranteed over the temperature range from 0°C to +70°C instead of −55°C to +125°C.
LM1458M/NOPB 数据手册
LM1458M/NOPB

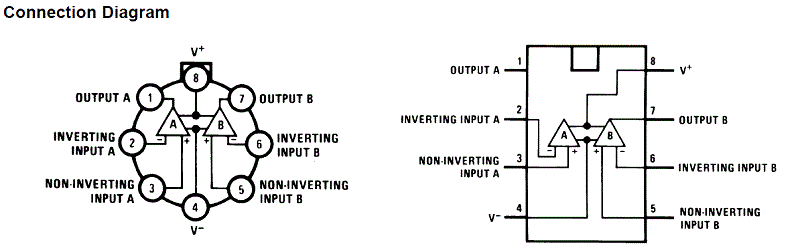

LM1458M/NOPB 电路图
