DS99R101VS/NOPB 供应商
-
DS99R101VS/NOPB
品牌：TI 封装/批号：原厂原装/22+ -
DS99R101VS/NOPB
品牌：TI(德州仪器) 封装/批号：TQFP-48(7x7)/2022+
DS99R101VS/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 激励器数量：1
- 接收机数量：24
- 数据速率：960 Mbps
- 工作电源电压：3.3 V
- 最大工作温度：+ 70 C
- 封装 / 箱体：TQFP-48
- 封装：Tray
- 最小工作温度：0 C
- 安装风格：SMD/SMT
- 工厂包装数量：250
- Supply Voltage - Max：3.6 V
- Supply Voltage - Min：3 V
- 类型：LVDS
产品特性
- 3 MHz–40 MHz Clock Embedded and DC-Balancing 24:1 and 1:24 Data Transmissions
- User Selectable Clock Edge for Parallel Data on Both Transmitter and Receiver
- Internal DC Balancing Encode/Decode – Supports AC-Coupling Interface with No External Coding Required
- Individual Power-Down Controls for Both Transmitter and Receiver
- Embedded Clock CDR (Clock and Data Recovery) on Receiver and No External Source of Reference Clock Needed
- All Codes RDL (Random Data Lock) to Support Live-Pluggable Applications
- LOCK Output Flag to Ensure Data Integrity at Receiver Side
- Balanced TSETUP/THOLD Between RCLK and RDATA on Receiver Side
- PTO (Progressive Turn-On) LVCMOS Outputs to Reduce EMI and Minimize SSO Effects
- All LVCMOS Inputs and Control Pins Have Internal Pulldown
- On-Chip Filters for PLLs on Transmitter and Receiver
- 48-Pin TQFP Package
- Pure CMOS .35 μm Process
- Power Supply Range 3.3V ± 10%
- Temperature Range 0°C to +70°C
- 8 kV HBM ESD Tolerance
产品概述
The DS99R101/DS99R102 Chipset translates a 24-bit parallel bus into a fully transparent
data/control LVDS serial stream with embedded clock information. This single serial stream
simplifies transferring a 24-bit bus over PCB traces and cable by eliminating the skew problems
between parallel data and clock paths. It saves system cost by narrowing data paths that in turn
reduce PCB layers, cable width, and connector size and pins.The DS99R101/DS99R102 incorporates LVDS signaling on the high-speed I/O. LVDS provides a
low power and low noise environment for reliably transferring data over a serial transmission path.
By optimizing the serializer output edge rate for the operating frequency range EMI is further
reduced.Internal DC balanced encoding/decoding is used to support AC-Coupled
interconnects.
DS99R101VS/NOPB 数据手册
DS99R101VS/NOPB

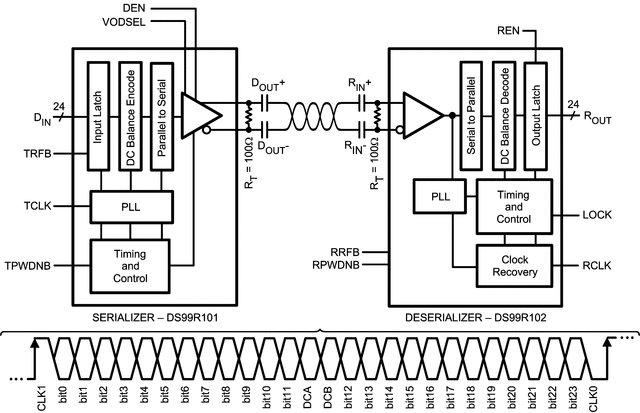

DS99R101VS/NOPB 电路图
