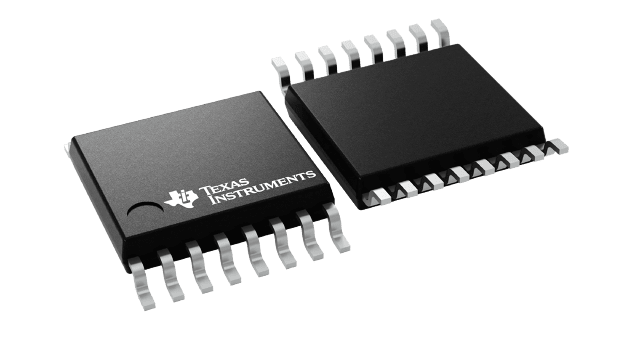

DS90LV047ATMTC/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 激励器数量：4
- 接收机数量：4
- 数据速率：400 Mbps
- 工作电源电压：3.3 V
- 最大功率耗散：866 mW
- 最大工作温度：+ 85 C
- 封装 / 箱体：TSSOP-16
- 封装：Tube
- 最小工作温度：- 40 C
- 安装风格：SMD/SMT
- 传播延迟时间：1.7 ns
- 工厂包装数量：92
- Supply Voltage - Max：3.6 V
- Supply Voltage - Min：3 V
- 类型：LVDS
产品特性
- >400-Mbps (200 MHz) Switching Rates
- Flow-Through Pinout Simplifies PCB Layout
- 300-ps Typical Differential Skew
- 400-ps Maximum Differential Skew
- 1.7-ns Maximum Propagation Delay
- 3.3-V Power Supply Design
- ±350-mV Differential Signaling
- Low Power Dissipation (13 mW at 3.3-V Static)
- Interoperable With Existing 5-V LVDS Receivers
- High impedance on LVDS Outputs on Power Down
- Conforms to TIA/EIA-644 LVDS Standard
- Industrial Operating Temperature Range (–40°C to +85°C)
- Available in Surface Mount SOIC and Low Profile TSSOP Package
产品概述
The DS90LV047A device is a quad CMOS flow-through differential line driver designed for
applications requiring ultra-low power dissipation and high data rates. The device is designed to
support data rates in excess of 400 Mbps (200 MHz) using Low Voltage Differential Signaling (LVDS)
technology.The DS90LV047A accepts low voltage TTL/CMOS input levels and translates them to low
voltage (350 mV) differential output signals. In addition, the driver supports a TRI-STATE function
that may be used to disable the output stage, disabling the load current, and thus dropping the
device to an ultra low idle power state of 13 mW typical. The DS90LV047A has a flow-through pinout
for easy PCB layout.The EN and EN∗ inputs are ANDed together and control the TRI-STATE outputs. The enables
are common to all four drivers. The DS90LV047A and companion line receiver (DS90LV048A) provide a
new alternative to high power psuedo-ECL devices for high speed point-to-point interface
applications.

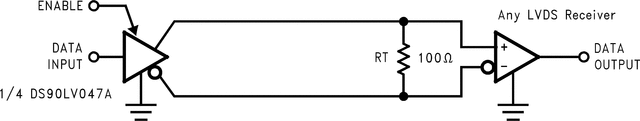

DS90LV047ATMTC/NOPB 电路图
