DS90C402MX/NOPB 供应商
-
DS90C402MX/NOPB
品牌：TI 封装/批号：原厂原装/22+ -
DS90C402MX/NOPB
品牌：NS/ELNAF 封装/批号：SOP8/1828+
DS90C402MX/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 激励器数量：2
- 接收机数量：2
- 数据速率：155.5 Mbps
- 工作电源电压：5 V
- 最大功率耗散：1025 mW
- 最大工作温度：+ 85 C

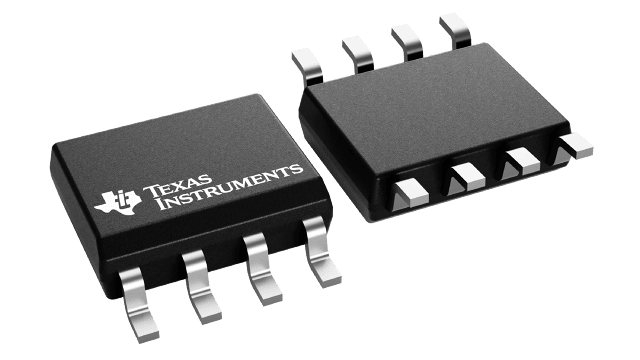

- 封装 / 箱体：SOIC-8 Narrow
- 封装：Reel
- 最小工作温度：- 40 C
- 安装风格：SMD/SMT
- 传播延迟时间：6 ns
- 工厂包装数量：2500
- Supply Voltage - Max：5.5 V
- Supply Voltage - Min：4.5 V
- 类型：TTL
产品特性
- Ultra Low Power Dissipation
- Operates above 155.5 Mbps
- Standard TIA/EIA-644
- 8 Lead SOIC Package saves PCB space
- VCM ±1V center around 1.2V
- ±100 mV Receiver Sensitivity
产品概述
The DS90C402 is a dual receiver device optimized for high data rate and low power
applications. This device along with the DS90C401 provides a pair chip solution for a dual high
speed point-to-point interface. The device is in a PCB space saving 8 lead small outline package.
The receiver offers ±100 mV threshold sensitivity, in addition to common-mode noise
protection.
DS90C402MX/NOPB 数据手册
DS90C402MX/NOPB

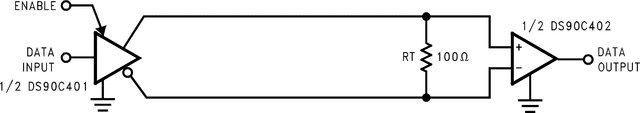

DS90C402MX/NOPB 电路图
