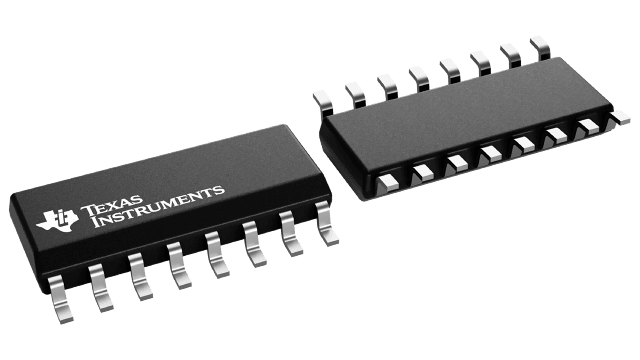

DS90C031TM/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 激励器数量：4
- 接收机数量：4
- 数据速率：155 Mbps
- 工作电源电压：5 V
- 最大功率耗散：1068 mW
- 最大工作温度：+ 85 C
- 封装 / 箱体：SOIC-16
- 封装：Tube
- 最小工作温度：- 40 C
- 安装风格：SMD/SMT
- 传播延迟时间：3 ns
- 工厂包装数量：48
- Supply Voltage - Max：5.5 V
- Supply Voltage - Min：4.5 V
- 类型：LVDS
产品特性
- >155.5 Mbps (77.7 MHz) switching rates
- ±350 mV differential signaling
- Ultra low power dissipation
- 400 ps maximum differential skew (5V, 25°C)
- 3.5 ns maximum propagation delay
- Industrial operating temperature range
- Military operating temperature range option
- Available in surface mount packaging (SOIC) and (LCC)
- Pin compatible with DS26C31, MB571 (PECL) and 41LG (PECL)
- Compatible with IEEE 1596.3 SCI LVDS standard
- Conforms to ANSI/TIA/EIA-644 LVDS standard
- Available to Standard Microcircuit Drawing (SMD) 5962-95833
产品概述
The DS90C031 is a quad CMOS differential line driver designed for applications requiring ultra low power dissipation and high data rates. The device is designed to support data rates in excess of 155.5 Mbps (77.7 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology.The DS90C031 accepts TTL/CMOS input levels and translates them to low voltage (350 mV) differential output signals. In addition the driver supports a TRI-STATE® function that may be used to disable the output stage, disabling the load current, and thus dropping the device to an ultra low idle power state of 11 mW typical.The DS90C031 and companion line receiver (DS90C032) provide a new alternative to high power psuedo-ECL devices for high speed point-to-point interface applications.
DS90C031TM/NOPB 数据手册
DS90C031TM/NOPB

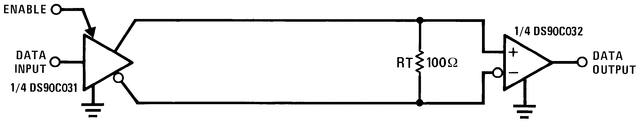

DS90C031TM/NOPB 电路图
