DS38EP100SD/NOPB
品牌：TI 封装/批号：原厂原装/22+ -
DS38EP100SD/NOPB

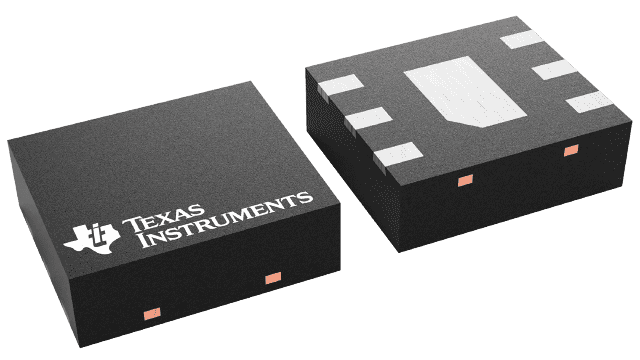

品牌：TI(德州仪器) 封装/批号：WSON-6(2.2x2.5)/2022+
DS38EP100SD/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 封装：Reel
- 工厂包装数量：1000
产品特性
- 1 to 5 Gbps Operation
- No Power or Ground Required
- Equalization Effective Anywhere in Data Path
- Equalizes CML, LV-PECL, LVDS Signals
- Symmetric I/O Structures Provide Equal Boost for Bi-directional Operation
- 7 dB Maximum Boost
- Code Independent, 8b/10b or Scrambled
- Supports Both Bi-level and Multi-level Signaling
- Extends Reach Over Backplanes and Cables
- Compatible with PCI-Express Gen1 and Gen2
- Compatible with XAUI
- Operates in Series with Existing Active Equalizer
- Easy to Handle 6 Pin WSON
产品概述
TI’s Power-saver equalizer compensates for transmission medium losses and minimizes
medium-induced deterministic jitter. Performance is ensured over the full range of 1 to 5 Gbps. The
DS38EP100 requires no power to operate. The equalizer operates anywhere in the data path to
minimize media-induced deterministic jitter in both FR4 and cable applications. Symmetric I/O
structures support full duplex or half duplex applications. Linear compensation is provided
independent of line coding or protocol. The device is ideal for both bi-level and multi-level
signaling.The equalizer is available in a 6 pin leadless WSON package with a space saving 2.2 mm X
2.5 mm footprint. This tiny package provides maximum flexibility in placement and routing of the
Power-saver equalizer.
DS38EP100SD/NOPB 数据手册
DS38EP100SD/NOPB

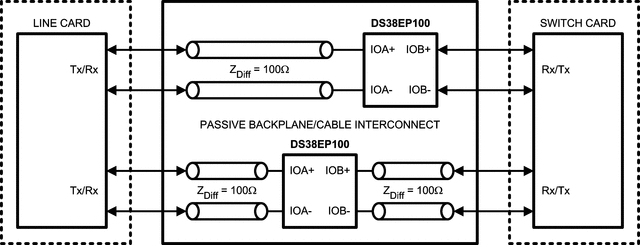

DS38EP100SD/NOPB 电路图
