DS32EL0124SQE/NOPB
品牌：TI 封装/批号：原厂原装/22+ -
DS32EL0124SQE/NOPB
品牌：TI(德州仪器) 封装/批号：WQFN-48/2022+
DS32EL0124SQE/NOPB 属性参数
- 制造商：National Semiconductor (TI)
- 激励器数量：5
- 接收机数量：2
- 数据速率：3125 Mbps
- 工作电源电压：2.5 V, 3.3 V
- 最大工作温度：+ 85 C
- 封装 / 箱体：LLP EP
- 封装：Reel
- 最小工作温度：- 40 C
- 工厂包装数量：250
- Supply Voltage - Max：3.465 V, 2.625 V
- Supply Voltage - Min：3.135 V, 2.375 V
- 类型：LVDS
产品特性
- 5-bit DDR LVDS Parallel Data Interface
- Programmable Receive Equalization
- Selectable DC-Balance Decoder
- Selectable De-Scrambler
- Remote Sense for Automatic Detection and Negotiation of Link Status
- No External Receiver Reference Clock Required
- LVDS Parallel Interface
- Programmable LVDS Output Clock Delay
- Supports Output Data-Valid Signaling
- Supports Keep-Alive Clock Output
- On Chip LC VCOs
- Redundant Serial Input (ELX device only)
- Retimed Serial Output (ELX device only)
- Configurable PLL Loop Bandwidth
- Configurable via SMBus
- Loss of Lock and Error Reporting
- 48-pin WQFN Package with Exposed DAP
- 1.25 to 3.125 Gbps Serial Data Rate
- 125 to 312.5 MHz DDR Parallel Clock
- -40° to +85°C Temperature Range
- > 8 kV ESD (HBM) Protection
- 0.5 UI Minimum Input Jitter Tolerance (1.25 Gbps)
产品概述
The DS32EL0124/DS32ELX0124 integrates clock and data recovery modules for high-speed
serial communication over FR-4 printed circuit board backplanes, balanced cables, and optical
fiber. This easy-to-use chipset integrates advanced signal and clock conditioning functions, with
an FPGA friendly interface. The DS32EL0124/DS32ELX0124 deserializes up to 3.125 Gbps of high speed serial data to 5
LVDS outputs without the need for an external reference clock. With DC-balance decoding enabled,
the application payload of 2.5 Gbps is deserialized to 4 LVDS outputs.The DS32EL0124/DS32ELX01214 deserializers feature a remote sense capability to
automatically signal link status conditions to its companion DS32EL0421/ELX0421 serializers without
requiring an additional feedback path.The parallel LVDS interface of these devices reduce FPGA I/O pins, board trace count and
alleviates EMI issues, when compared to traditional single-ended wide bus interfaces.The DS32EL0124/ELX0124 is programmable through a SMBus interface as well as through
control pins.
DS32EL0124SQE/NOPB 数据手册
DS32EL0124SQE/NOPB

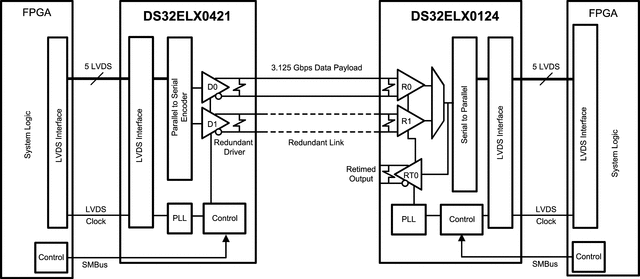

DS32EL0124SQE/NOPB 电路图
