DRV8814PWPR

参考价格：$3.24-$6.48

Texas Instruments PMIC - 电机和风扇控制器，驱动器

DRV8814PWPR 供应商

DRV8814PWPR 属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：PMIC - 电机和风扇控制器，驱动器
  • 系列：-
  • 应用：DC 电机驱动器，H 桥式
  • 评估套件：可供
  • 输出数：2
  • 电流 - 输出：1.75A
  • 电压 - 负载：8 V ~ 45 V
  • 电源电压：8 V ~ 45 V
  • 工作温度：-40°C ~ 85°C
  • 安装类型：表面贴装
  • 封装/外壳：28-SOIC（0.173"，4.40mm 宽）裸露焊盘
  • 供应商设备封装：28-HTSSOP
  • 包装：®
  • 其它名称：296-28359-6

产品特性

  • 8 V to 45 V Operating Supply Voltage Range
  • 2.5 A Maximum Drive Current at 24 V and TA = 25°C
  • Dual H-Bridge Current-Control Motor Driver Drives Two DC Motors Four Level Winding Current Control
  • Drives Two DC Motors
  • Four Level Winding Current Control
  • Multiple Decay Modes Slow Decay Fast Decay
  • Slow Decay
  • Fast Decay
  • Industry Standard Parallel Digital Control Interface
  • Low Current Sleep Mode
  • Built-In 3.3-V Reference Output
  • Small Package and Footprint
  • Protection Features Overcurrent Protection (OCP) Thermal Shutdown (TSD) VM Undervoltage Lockout (UVLO) Fault Condition Indication Pin (nFAULT)
  • Overcurrent Protection (OCP)
  • Thermal Shutdown (TSD)
  • VM Undervoltage Lockout (UVLO)
  • Fault Condition Indication Pin (nFAULT)

产品概述

The DRV8814 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and is intended to drive DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as H-bridges to drive the motor windings. The DRV8814 can supply up to 2.5-A peak or 1.75-A RMS output current (with proper heatsinking at 24 V and 25°C) per H-bridge.A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable to allow braking or coasting of the motor when disabled.Internal shutdown functions are provided for over current protection, short circuit protection, under voltage lockout, and over temperature.The DRV8814 is available in a 28-pin HTSSOP package with PowerPAD™ (Eco-friendly: RoHS & no Sb/Br).
查看全部

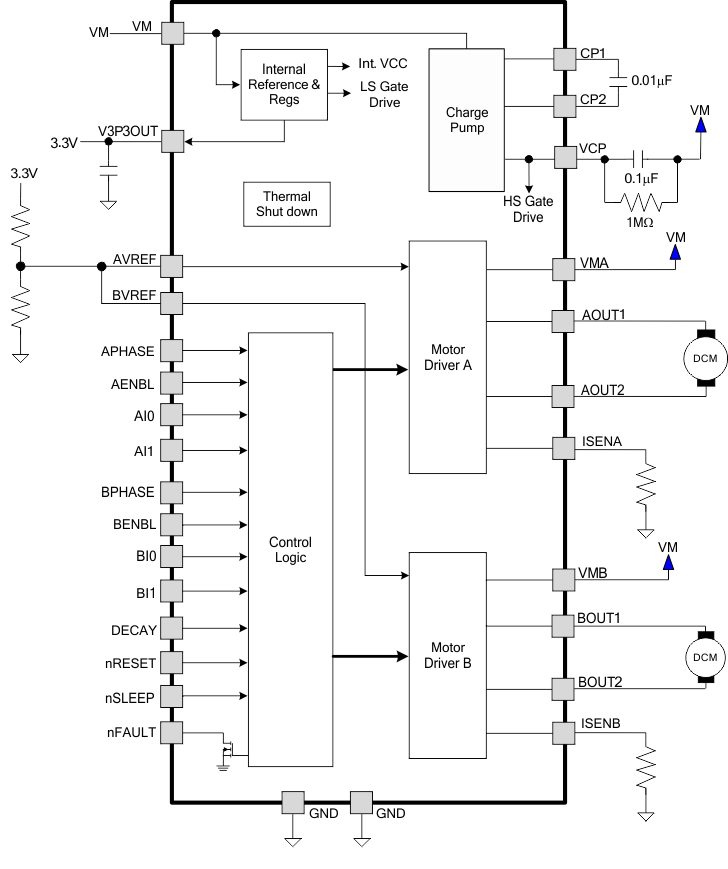

DRV8814PWPR 电路图
