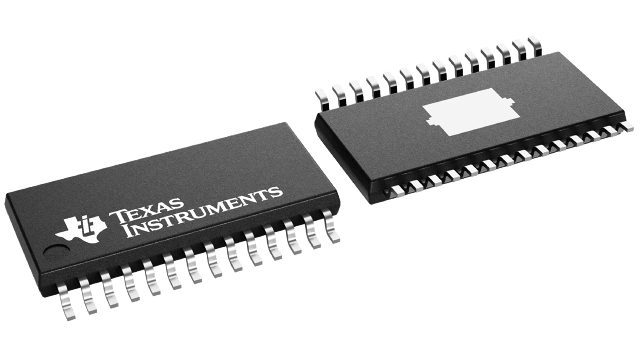

DRV8812PWPR

参考价格：$2.376-$4.75

Texas Instruments PMIC - 电机和风扇控制器，驱动器

DRV8812PWPR 供应商

DRV8812PWPR 属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：PMIC - 电机和风扇控制器，驱动器
  • 系列：-
  • 应用：直流电机驱动器，步进电机驱动器
  • 评估套件：可供
  • 输出数：1 或 2
  • 电流 - 输出：1.6A
  • 电压 - 负载：8 V ~ 45 V
  • 电源电压：-
  • 工作温度：-40°C ~ 85°C
  • 安装类型：表面贴装
  • 封装/外壳：28-SOIC（0.173"，4.40mm 宽）裸露焊盘
  • 供应商设备封装：28-HTSSOP
  • 包装：®
  • 其它名称：296-29723-6

产品特性

  • 8.2-V to 45-V Operating Supply Voltage Range
  • 1.6-A Maximum Drive Current at 24 V and TA = 25°C
  • Dual H-Bridge Current Control Motor Driver Drive a Bipolar Stepper or Two DC Motors Four Level Winding Current Control
  • Drive a Bipolar Stepper or Two DC Motors
  • Four Level Winding Current Control
  • Multiple Decay Modes Mixed Decay Slow Decay Fast Decay
  • Mixed Decay
  • Slow Decay
  • Fast Decay
  • Industry Standard Parallel Digital Control Interface
  • Low Current Sleep Mode
  • Built In 3.3-V Reference Output Small Package and Footprint
  • Protection Features Overcurrent Protection (OCP) Thermal Shutdown (TSD) VM Undervoltage Lockout (UVLO) Fault Condition Indication Pin (nFAULT)
  • Overcurrent Protection (OCP)
  • Thermal Shutdown (TSD)
  • VM Undervoltage Lockout (UVLO)
  • Fault Condition Indication Pin (nFAULT)
  • APPLICATIONS Automatic Teller Machines Money Handling Machines Video Security Cameras Printers Scanners Office Automation Machines Gaming Machines Factory Automation Robotics
  • Automatic Teller Machines
  • Money Handling Machines
  • Video Security Cameras
  • Printers
  • Scanners
  • Office Automation Machines
  • Gaming Machines
  • Factory Automation
  • Robotics

产品概述

The DRV8812 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and can drive a bipolar stepper motor or two DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as full H-bridges to drive the motor windings. The DRV8812 is capable of driving up to 1.6-A of output current (with proper heatsinking, at 24 V and 25°C).A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable.Internal shutdown functions are provided for over current protection, short circuit protection, under voltage lockout and overtemperature.The DRV8812 is available in a 28-pin HTSSOP package with PowerPAD™ and in a 28-pin QFN package PowerPAD™ (Eco-friendly: RoHS & no Sb/Br).
查看全部

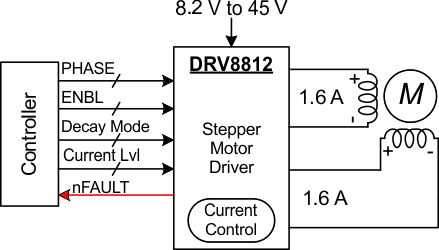

DRV8812PWPR 电路图
