DRV592VFP 属性参数
- 制造商：Texas Instruments
- 产品种类：功率驱动器IC
- 产品：H-Bridge Drivers
- 类型：Non-Inverting
- Supply Voltage - Max：5.5 V
- Supply Voltage - Min：2.8 V
- 电源电流：1 mA
- 最大功率耗散：4.1 W
- 最大工作温度：+ 85 C
- 安装风格：SMD/SMT

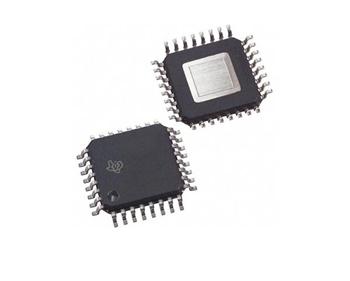

- 封装 / 箱体：HLQFP-32 EP
- 封装：Tray
- 最小工作温度：- 40 C
- 激励器数量：2
- 工作电源电压：2.8 V to 5.5 V
- 输出电流：3 A
- 工厂包装数量：250
产品特性
- ±3-A Maximum Output Current
- Requires External PWM From DC to 1 MHz With TTL-Compatible Voltages for High and Low
- Low Supply Voltage Operation: 2.8 V to 5.5 V
- High Efficiency Generates Less Heat
- Over-Current and Thermal Protection
- Fault Indicators for Over-Current, Thermal and Under-Voltage Conditions
- 9×9 mm PowerPAD™ Quad Flatpack
- APPLICATIONS Thermoelectric Cooler (TEC) Driver Laser Diode Biasing
- Thermoelectric Cooler (TEC) Driver
- Laser Diode Biasing
产品概述
The DRV592 is a high-efficiency, high-current H-bridge ideal for driving a wide variety of thermoelectric cooler elements in systems powered from 2.8 V to 5.5 V. Low output stage on-resistance significantly decreases power dissipation in the amplifier.The DRV592 may be driven from any external PWM generator such as a DSP, a microcontroller, or a FPGA. The frequency may vary from dc (i.e., on or off) to 1 MHz. The inputs are compatible with TTL logic levels.The DRV592 is internally protected against thermal and current overloads. Logic-level fault indicators signal when the junction temperature has reached approximately 130°C to allow for system-level shutdown before the amplifier’s internal thermal shutdown circuitry activates. The fault indicators also signal when an over-current event has occurred. If the over-current circuitry is tripped, the DRV592 automatically resets.
