BQ24725RGRR 供应商
-
BQ24725RGRR
品牌：TI 封装/批号：QFN20/23+ -
BQ24725RGRR
品牌：TI/德州仪器 封装/批号：QFN20/21+ -
BQ24725RGRR
品牌：TI/德州仪器 封装/批号：VQFN20/2022+ -
BQ24725RGRR
品牌：TI 封装/批号：原厂原封装/新批号 -
BQ24725RGRRG4
品牌：TI/BB 封装/批号：VQFN20/23+
BQ24725RGRR 属性参数
- 标准包装：1
- 类别：集成电路 (IC)
- 家庭：PMIC - 电池管理
- 系列：-
- 功能：充电管理
- 电池化学：锂离子（Li-Ion）
- 电源电压：4.5 V ~ 24 V
- 工作温度：-40°C ~ 85°C
- 安装类型：表面贴装

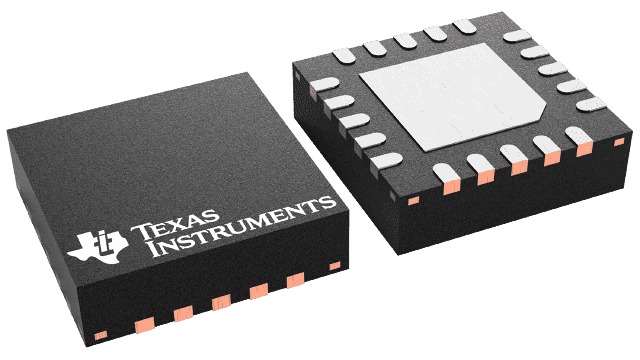

- 封装/外壳：20-VFQFN 裸露焊盘
- 供应商设备封装：20-VQFN-EP（3.5x3.5）
- 包装：®
- 其它名称：296-27692-6
产品特性
- SMBus Host-Controlled NMOS-NMOS Synchronous Buck Converter with Programmable 615kHz, 750kHz, and 885kHz Switching Frequencies
- Automatic N-channel MOSFET Selection of System Power Source from Adapter or Battery Driven by Internal Charge Pumps
- Enhanced Safety Features for Over Voltage Protection, Over Current Protection, Battery, Inductor and MOSFET Short Circuit Protection
- Programmable Input Current, Charge Voltage, Charge Current Limits ±0.5% Charge Voltage Accuracy up to 19.2V ±3% Charge Current Accuracy up to 8.128A ±3% Input Current Accuracy up to 8.064A ±2% 20x Adapter Current or Charge Current Amplifier Output Accuracy
- ±0.5% Charge Voltage Accuracy up to 19.2V
- ±3% Charge Current Accuracy up to 8.128A
- ±3% Input Current Accuracy up to 8.064A
- ±2% 20x Adapter Current or Charge Current Amplifier Output Accuracy
- Programmable Battery Depletion Threshold, and Battery LERAN Function
- Programmable Adapter Detection and Indicator
- Integrated Soft Start
- Integrated Loop Compensation
- Real Time System Control on ILIM pin to Limit Charge Current
- AC Adapter Operating Range 9V-24V
- 5µA Off-State Battery Discharge Current
- 20-pin 3.5 × 3.5 mm2 QFN Package
- APPLICATIONS Portable Notebook Computers, UMPC, Ultra-Thin Notebook, and Netbook Personal Digital Assistant Handheld Terminal Industrial and Medical Equipment Portable Equipment
- Portable Notebook Computers, UMPC, Ultra-Thin Notebook, and Netbook
- Personal Digital Assistant
- Handheld Terminal
- Industrial and Medical Equipment
- Portable Equipment
产品概述
The bq24725 is a high-efficiency, synchronous battery charger, offering low component count for space-constraint, multi-chemistry battery charging applications. The bq24725 uses two charge pumps to separately drive n-channel MOSFETs (ACFET, RBFET and BATFET) for automatic system power source selection.SMBus controlled input current, charge current, and charge voltage DACs allow for high regulation accuracies that can be programmed by the system power management micro-controller.The bq24725 uses internal input current register or external ILIM pin to throttle down PWM modulation to reduce the charge current.The bq24725 charges two, three or four series Li+ cells, and is available in a 20-pin, 3.5 × 3.5 mm2 QFN package.
BQ24725RGRR 电路图
