BQ24630RGET 供应商
-
BQ24630RGET
品牌：TI 封装/批号：原厂原装/22+ -
BQ24630RGET
品牌：TI(德州仪器) 封装/批号：VQFN-24/2022+ -
BQ24630RGET
品牌：TI 封装/批号：原厂原装/2318+
BQ24630RGET 属性参数
- 标准包装：1
- 类别：集成电路 (IC)
- 家庭：PMIC - 电池管理
- 系列：-
- 功能：充电管理
- 电池化学：磷酸铁锂（LiFePO4）
- 电源电压：5 V ~ 28 V
- 工作温度：-40°C ~ 85°C
- 安装类型：表面贴装
- 封装/外壳：24-VFQFN 裸露焊盘
- 供应商设备封装：24-VQFN 裸露焊盘（4x4）
- 包装：®
- 其它名称：296-25761-6
产品特性
- 300-kHz NMOS-NMOS Synchronous Buck Converter
- Stand-Alone Charger Specifically for Lithium Phosphate
- 5-V–28-V VCC Input Operating Range, Supports 1–7 Battery Cells
- High-Accuracy Voltage and Current Regulation ±0.5% Charge Voltage Accuracy ±3% Charge Current Accuracy ±3% Adapter Current Accuracy
- ±0.5% Charge Voltage Accuracy
- ±3% Charge Current Accuracy
- ±3% Adapter Current Accuracy
- Integration Automatic System Power Selection From Adapter or Battery Internal Loop Compensation Internal Soft Start Dynamic Power Management (DPM)
- Automatic System Power Selection From Adapter or Battery
- Internal Loop Compensation
- Internal Soft Start
- Dynamic Power Management (DPM)
- Safety Protection Input Overvoltage Protection Battery Thermistor Sense Suspend Charge at Hot/Cold and Automatically ICHARGE/8 at Hot/Cold or Warm/Cool Battery Detection Reverse Protection Input FET Programmable Safety Timer Charge Overcurrent Protection Battery Short Protection Battery Overvoltage Protection Thermal Shutdown
- Input Overvoltage Protection
- Battery Thermistor Sense Suspend Charge at Hot/Cold and Automatically ICHARGE/8 at Hot/Cold or Warm/Cool
- Battery Detection
- Reverse Protection Input FET
- Programmable Safety Timer
- Charge Overcurrent Protection
- Battery Short Protection
- Battery Overvoltage Protection
- Thermal Shutdown
- Status Outputs Adapter Present Charger Operation Status
- Adapter Present
- Charger Operation Status
- Charge Enable Pin
- 6-V Gate Drive for Synchronous Buck Converter
- 30-ns Driver Dead Time and 99.95% Max. Effective Duty Cycle
- 24-Pin 4-mm × 4-mm QFN Package
- Energy Star Low Quiescent Current Iq < 15-µA Off-State Battery Discharge Current < 1.5-mA Off-State Input Quiescent Current
- < 15-µA Off-State Battery Discharge Current
- < 1.5-mA Off-State Input Quiescent Current
- APPLICATIONS Power Tool and Portable Equipment Personal Digital Assistants Handheld Terminals Industrial and Medical Equipment Netbook, Mobile Internet Device, and Ultra-Mobile PC
- Power Tool and Portable Equipment
- Personal Digital Assistants
- Handheld Terminals
- Industrial and Medical Equipment
- Netbook, Mobile Internet Device, and Ultra-Mobile PC
产品概述
The bq24630 is a highly integrated lithium phosphate switched-mode battery charge
controller. The device offers a constant-frequency synchronous switching PWM controller with
high-accuracy charge current and voltage regulation, charge preconditioning, termination, adapter
current regulation, and charge status monitoring.The bq24630 charges the battery in three phases: preconditioning, constant current, and
constant voltage. Charge is terminated when the current reaches a minimum user-selectable level. A
programmable charge timer provides a safety backup. The bq24630 automatically restarts the charge
cycle if the battery voltage falls below an internal threshold and enters a low quiescent current
sleep mode when the input voltage falls below the battery voltage.

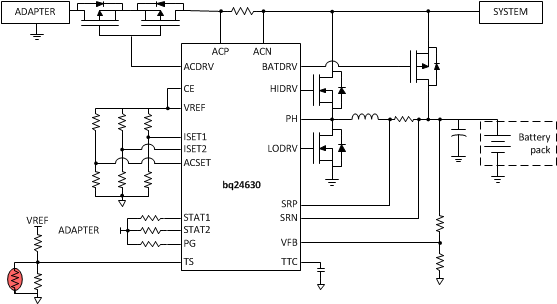

BQ24630RGET 电路图
