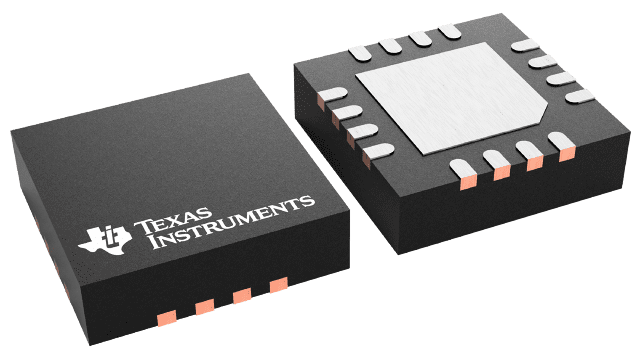

BQ24620RVAR 属性参数
- 标准包装：3,000
- 类别：集成电路 (IC)
- 家庭：PMIC - 电池管理
- 系列：-
- 功能：*
- 电池化学：磷酸铁锂（LiFePO4）
- 电源电压：5 V ~ 28 V
- 工作温度：-40°C ~ 85°C
- 安装类型：表面贴装
- 封装/外壳：16-VFQFN 裸露焊盘
- 供应商设备封装：16-VQFN 裸露焊盘（3.5x3.5）
- 包装：带卷 (TR)
产品特性
- 300-kHz NMOS-NMOS Synchronous Buck Converter
- Stand-Alone Charger Designed Specifically for Lithium Phosphate
- 5-V to 28-V VCC Operating Range, Supports 1 to 7 Battery Cells
- High-Accuracy Voltage and Current Regulation ±0.5% Charge Voltage Accuracy ±3% Charge Current Accuracy
- ±0.5% Charge Voltage Accuracy
- ±3% Charge Current Accuracy
- Integration Internal Loop Compensation Internal Soft Start
- Internal Loop Compensation
- Internal Soft Start
- Safety Input Overvoltage Protection Battery Thermistor Sense Suspend Charge at Hot/Cold Charge Suspend and Automatically ICHARGE/8 at WARM/COOL Battery Detection Built-In Safety Timer Charge Overcurrent Protection Battery Short Protection Battery Overvoltage Protection Thermal Shutdown
- Input Overvoltage Protection
- Battery Thermistor Sense Suspend Charge at Hot/Cold Charge Suspend and Automatically ICHARGE/8 at WARM/COOL
- Battery Detection
- Built-In Safety Timer
- Charge Overcurrent Protection
- Battery Short Protection
- Battery Overvoltage Protection
- Thermal Shutdown
- Status Outputs Adapter Present Charger Operation Status
- Adapter Present
- Charger Operation Status
- Charge Enable Pin
- 6-V Gate Drive for Synchronous Buck Converter
- 30-ns Driver Dead Time and 99.95% Maximum Effective Duty Cycle
- 16-Pin 3.5-mm × 3.5-mm QFN Package
- Energy Star Low Iq < 15-µA Off-State Battery Discharge Current < 1.5-mA Off-State Input Quiescent Current
- < 15-µA Off-State Battery Discharge Current
- < 1.5-mA Off-State Input Quiescent Current
- APPLICATIONS Power Tools and Portable Equipment Personal Digital Assistants Handheld Terminals Industrial and Medical Equipment Netbooks, Mobile Internet Devices, and Ultramobile PCs
- Power Tools and Portable Equipment
- Personal Digital Assistants
- Handheld Terminals
- Industrial and Medical Equipment
- Netbooks, Mobile Internet Devices, and Ultramobile PCs
产品概述
The bq24620 device is a highly integrated lithium phosphate switched-mode battery charge
controller. The device offers a constant-frequency synchronous switching PWM controller with
high-accuracy charge current and voltage regulation, charge preconditioning, termination, and
charge status monitoring.The bq24620 charges the battery in three phases: preconditioning, constant current, and
constant voltage.

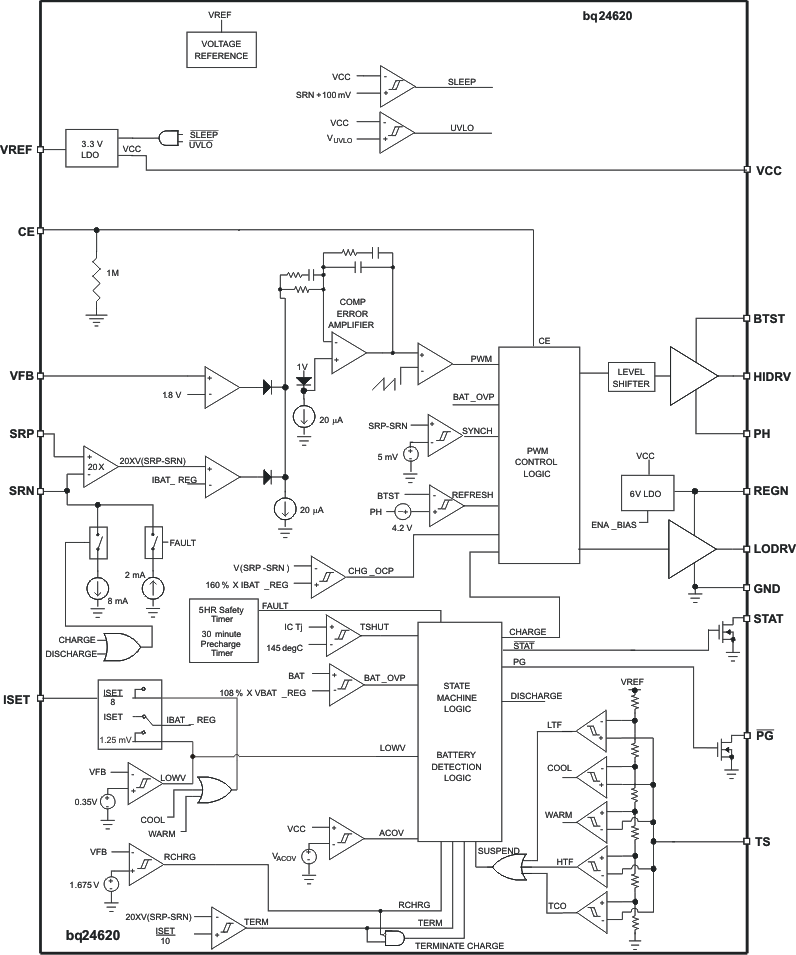

BQ24620RVAR 电路图
