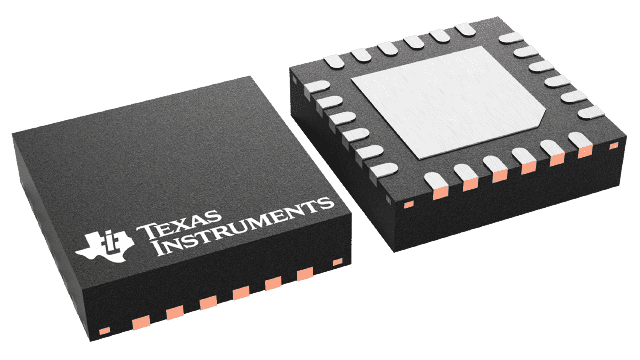

BQ24616RGET

参考价格：$6.112-$8.26

Texas Instruments PMIC - 电池管理

BQ24616RGET 供应商

BQ24616RGET 属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：PMIC - 电池管理
  • 系列：-
  • 功能：充电管理
  • 电池化学：锂离子（Li-Ion）、锂聚合物（Li-Pol）
  • 电源电压：5 V ~ 28 V
  • 工作温度：-40°C ~ 85°C
  • 安装类型：表面贴装
  • 封装/外壳：24-VFQFN 裸露焊盘
  • 供应商设备封装：24-VQFN 裸露焊盘（4x4）
  • 包装：®
  • 其它名称：296-27632-6

产品特性

  • Battery Thermistor Sense for JEITA Guideline Compatible Charger
  • 600-kHz NMOS-NMOS Synchronous Buck Converter
  • Stand-Alone Charger Support for Li-Ion or Li- Polymer
  • 5-V–28-V VCC Input Operating Range and Supports 1 to 6 Battery Cells
  • Up to 10-A Charge Current and Adapter Current
  • High-Accuracy Voltage and Current Regulation ±0.5% Charge Voltage Accuracy ±3% Charge Current Accuracy ±3% Adapter Current Accuracy
  • ±0.5% Charge Voltage Accuracy
  • ±3% Charge Current Accuracy
  • ±3% Adapter Current Accuracy
  • Integration Automatic System Power Selection From Adapter or Battery Internal Loop Compensation Internal Soft-Start Dynamic Power Management
  • Automatic System Power Selection From Adapter or Battery
  • Internal Loop Compensation
  • Internal Soft-Start
  • Dynamic Power Management
  • Safety Protection Input Overvoltage Protection Battery Detection Reverse Protection Input FET Programmable Safety Timer Charge Overcurrent Protection Battery Short Protection Battery Overvoltage Protection Thermal Shutdown
  • Input Overvoltage Protection
  • Battery Detection
  • Reverse Protection Input FET
  • Programmable Safety Timer
  • Charge Overcurrent Protection
  • Battery Short Protection
  • Battery Overvoltage Protection
  • Thermal Shutdown
  • Status Outputs Adapter Present Charger Operation Status
  • Adapter Present
  • Charger Operation Status
  • Charge Enable Pin
  • 6-V Gate Drive for Synchronous Buck Converter
  • 30-ns Driver Dead-Time and 99.5% Maximum Effective Duty Cycle
  • 24-Pin, 4-mm × 4-mm QFN Package
  • Energy Star Low Quiescent Current Iq < 15-µA Off-State Battery Discharge Current < 1.5-mA Off-State Input Quiescent Current
  • < 15-µA Off-State Battery Discharge Current
  • < 1.5-mA Off-State Input Quiescent Current

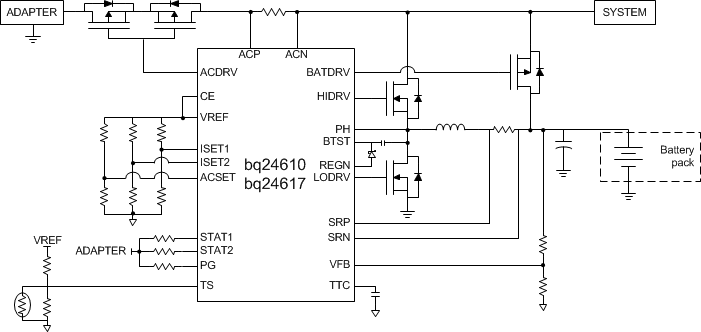

产品概述

The bq2461x device is a highly integrated, Japan Electronic Information Technology Association (JEITA) guideline-compatible, Li-ion or Li-polymer switched-mode battery charge controller. The device offers a constant-frequency synchronous switching PWM controller with high-accuracy charge current and voltage regulation, charge preconditioning, termination, adapter current regulation, and charge status monitoringThe bq2461x charges the battery in three phases: preconditioning, constant current, and constant voltage. Charge is terminated when the current reaches a minimum user-selectable level. A programmable charge timer provides a safety backup. The bq2461x automatically restarts the charge cycle if the battery voltage falls below an internal threshold, and enters a low quiescent current sleep mode when the input voltage falls below the battery voltage.
