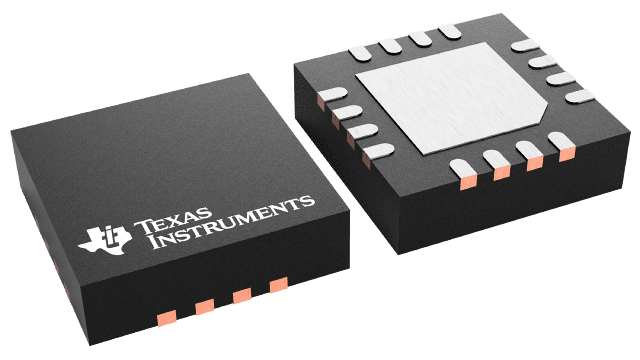

BQ24600RVAT

参考价格：$6.112-$8.26

Texas Instruments PMIC - 电池管理

BQ24600RVAT 供应商

BQ24600RVAT 属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：PMIC - 电池管理
  • 系列：-
  • 功能：充电管理
  • 电池化学：锂离子（Li-Ion）、锂聚合物（Li-Pol）
  • 电源电压：5 V ~ 28 V
  • 工作温度：-40°C ~ 85°C
  • 安装类型：表面贴装
  • 封装/外壳：16-VFQFN 裸露焊盘
  • 供应商设备封装：16-VQFN 裸露焊盘（3.5x3.5）
  • 包装：®
  • 其它名称：296-27208-6

产品特性

  • 1.2-MHz NMOS-NMOS Synchronous Buck Converter
  • Stand-Alone Charger Support for Li-Ion or Li-Polymer
  • 5-V – 28-V VCC Input Voltage Range and Supports 1S-6S Battery Cells
  • Up to 10-A Charge Current and Adapter Current
  • High-Accuracy Voltage and Current Regulation ±0.5% Charge-Voltage Accuracy ±3% Charge-Current Accuracy
  • ±0.5% Charge-Voltage Accuracy
  • ±3% Charge-Current Accuracy
  • Integration Internal Loop Compensation Internal Soft Start
  • Internal Loop Compensation
  • Internal Soft Start
  • Safety Input Overvoltage Protection Battery Thermistor Sense Hot/Cold Charge Suspend Battery Detection Built-In Safety Timer Charge Overcurrent Protection Battery Short Protection Battery Overvoltage Protection Thermal Shutdown
  • Input Overvoltage Protection
  • Battery Thermistor Sense Hot/Cold Charge Suspend
  • Battery Detection
  • Built-In Safety Timer
  • Charge Overcurrent Protection
  • Battery Short Protection
  • Battery Overvoltage Protection
  • Thermal Shutdown
  • Status Outputs Adapter Present Charger Operation Status
  • Adapter Present
  • Charger Operation Status
  • Charge Enable Pin
  • 6-V Gate Drive for Synchronous Power Converter
  • 30-ns Driver Dead-Time and 99.5% Max. Effective Duty Cycle
  • 16-Pin 3.5-mm × 3.5-mm QFN package
  • Energy Star Low Quiescent Current Iq < 15-µA Off-State Battery Discharge Current < 1.5-mA Off-State Input Quiescent Current
  • < 15-µA Off-State Battery Discharge Current
  • < 1.5-mA Off-State Input Quiescent Current

产品概述

The bq24600 is a highly integrated Li-ion or Li-polymer switch-mode battery-charge controller. It offers a constant-frequency synchronous PWM controller with high-accuracy charge current and voltage regulation, charge preconditioning, termination, and charge status monitoring, The bq24600 charges the battery in three phases: preconditioning, constant current, and constant voltage. Charge is terminated when the current reaches a minimum level. An internal charge timer provides a safety backup. The bq24600 automatically restarts the charge cycle if the battery voltage falls below an internal threshold, and enters a low-quiescent-current sleep mode when the input voltage falls below the battery voltage.
查看全部

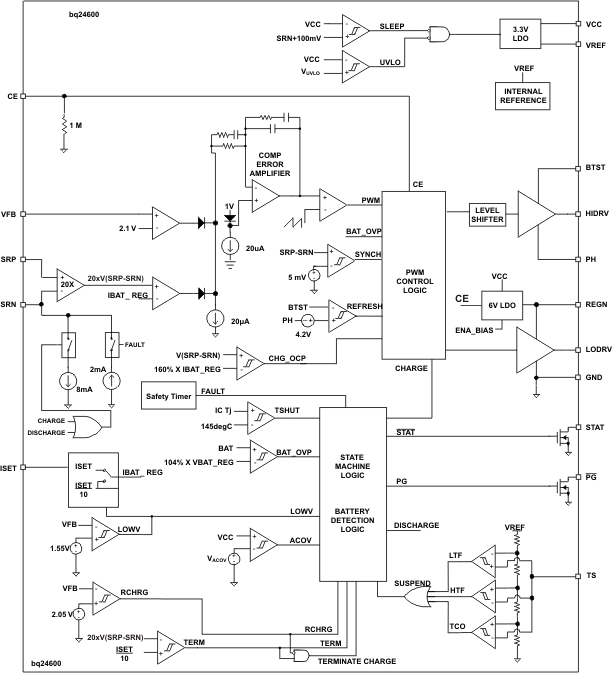

BQ24600RVAT 电路图
